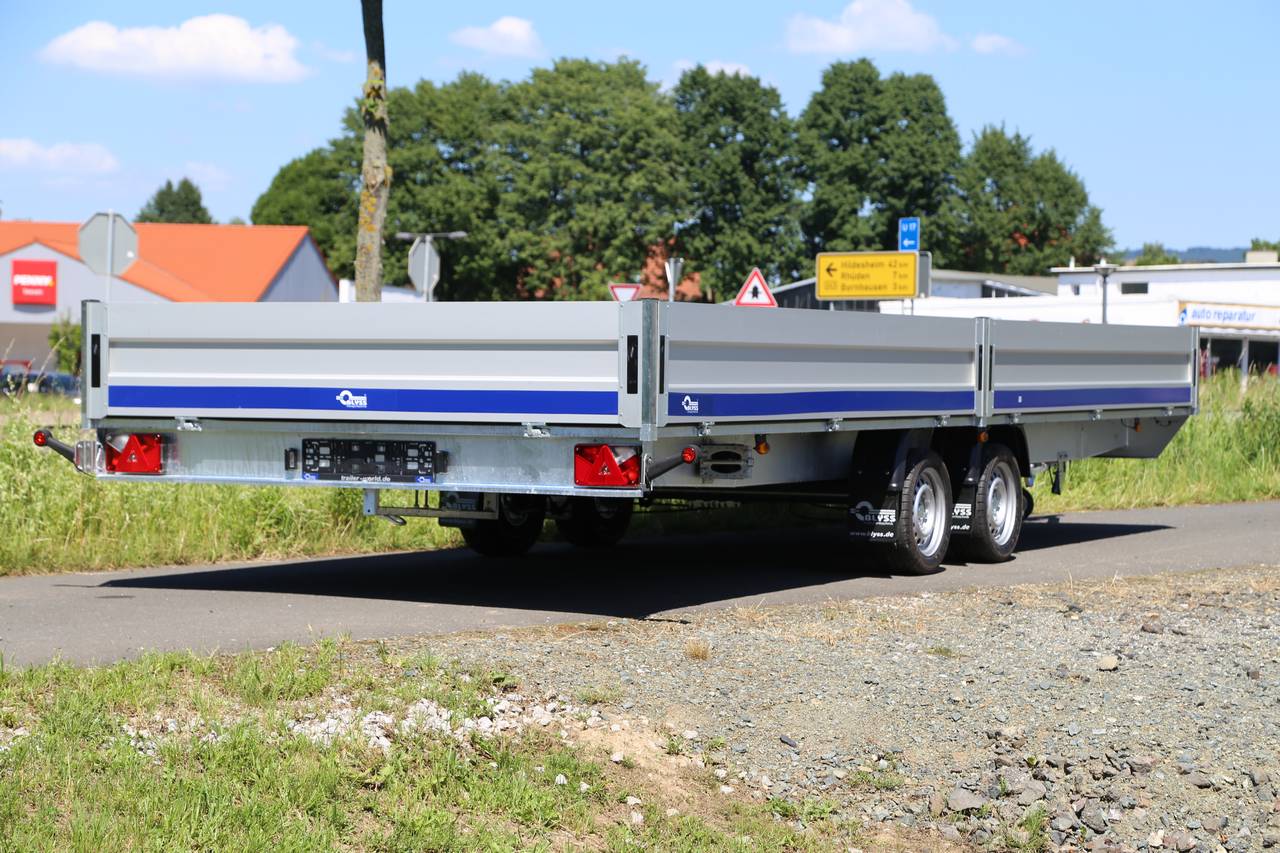

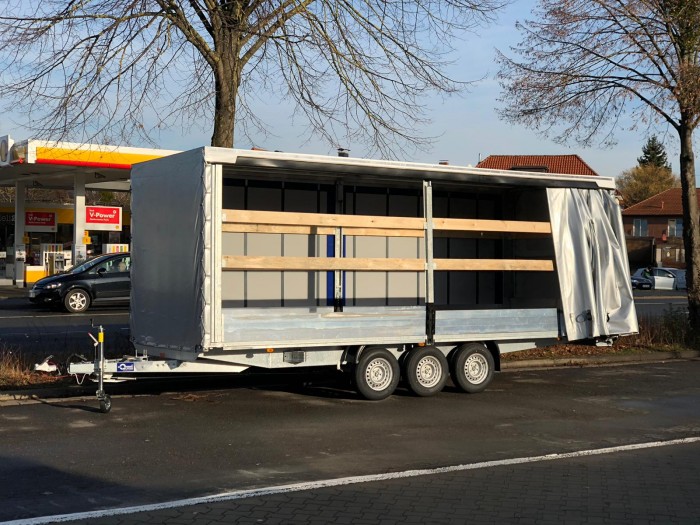

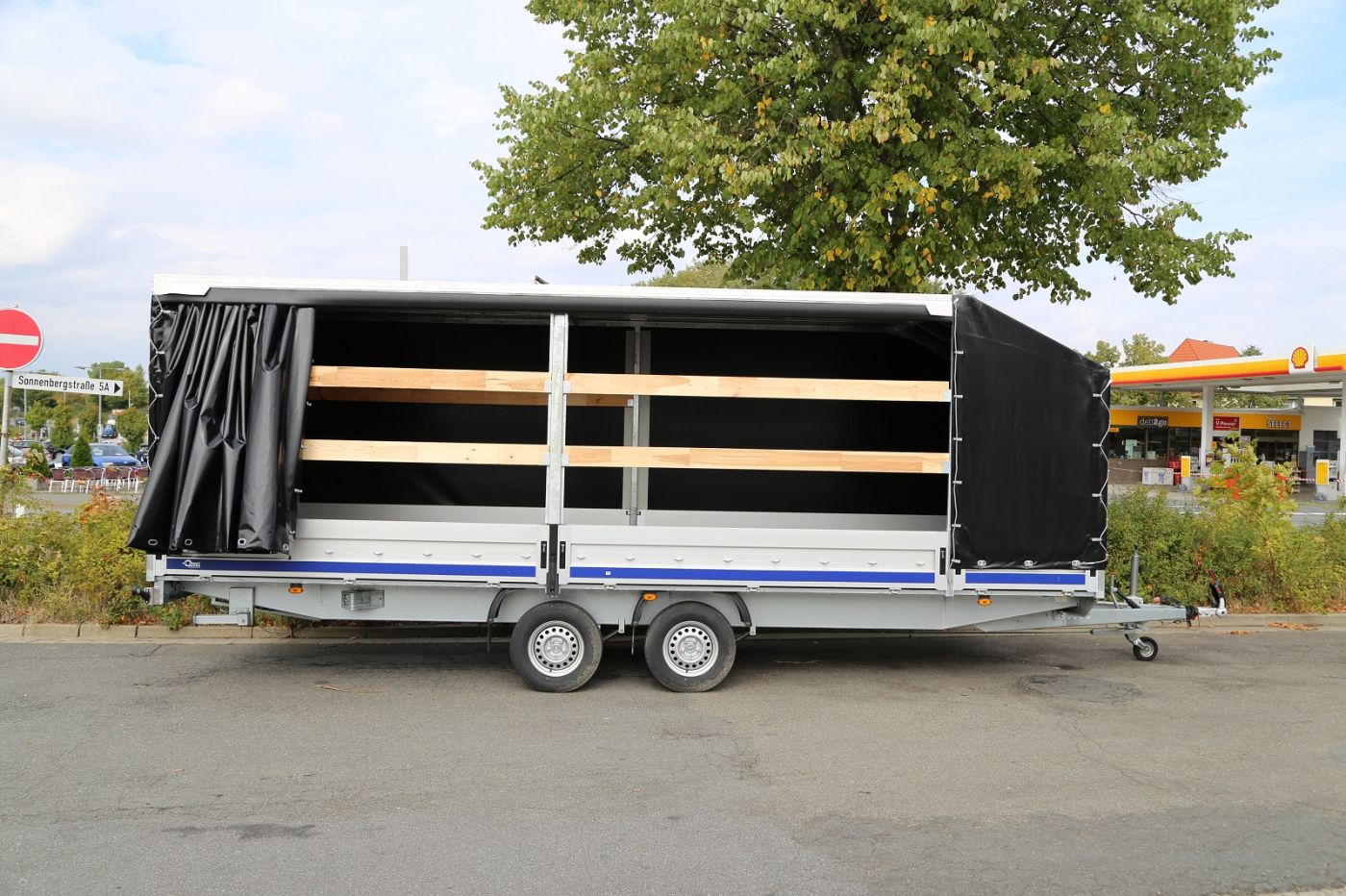

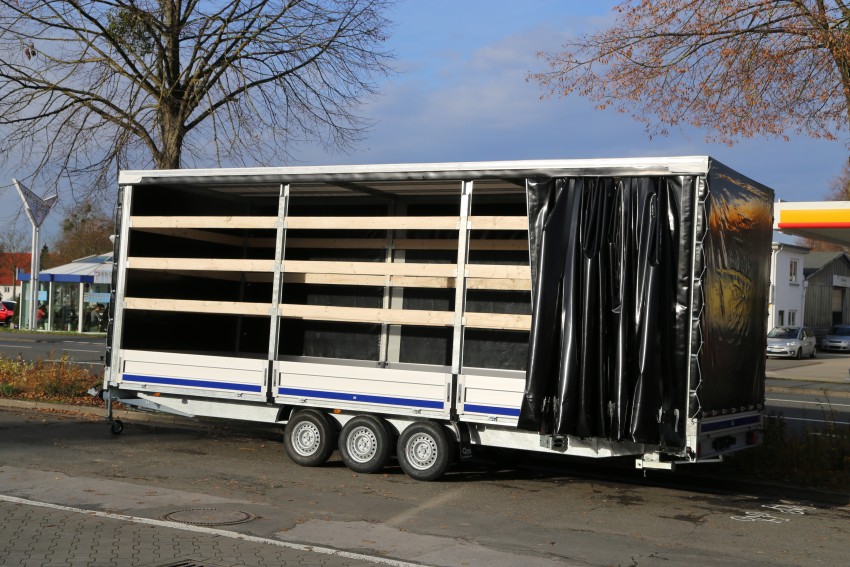

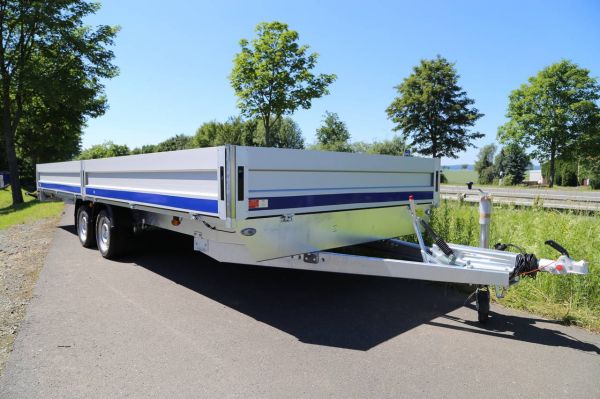

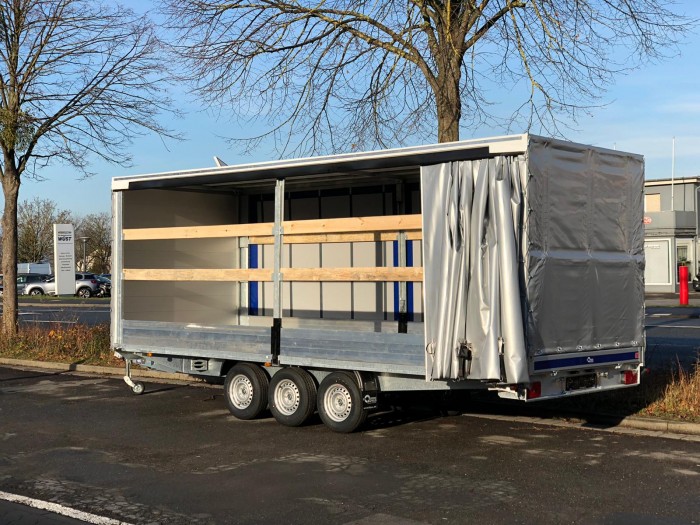

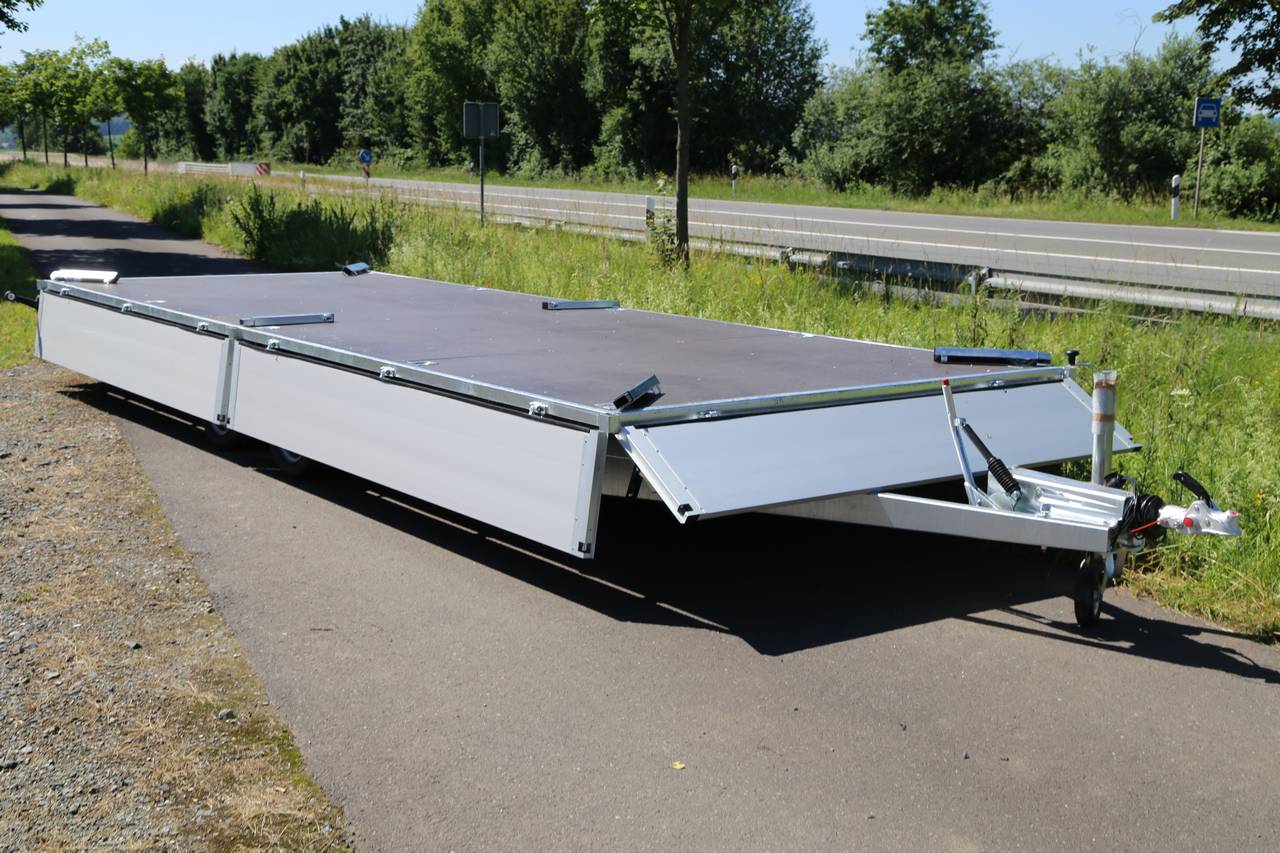

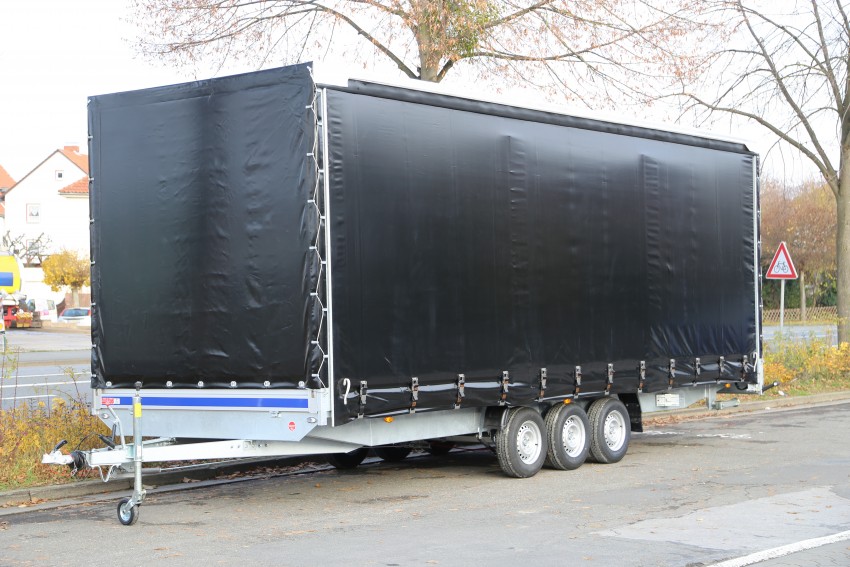

Freight trailer C35xxx

Article No. Model Internal Dimension [LxWxH cm] Gross Weight [kg] Payload [kg] Loading Height [cm] Tyres [Inches]
02301013582 C3551A 510 X 210 X 40 3500 2660 76 14
02302013582 C3551B 510 X 248 X 40 3500 2610 76 14
02303013582 C3561A 610 X 210 X 40 3500 2625 76 14
02304013582 C3561B 610 X 248 X 40 3500 2550 76 14
02305013582 C3565A 650 X 210 X 40 3500 2510 76 14
02306013582 C3565B 650 X 248 X 40 3500 2500 76 14
02307013582 C3573A 730 X 210 X 40 3500 2390 76 14
02308013582 C3573B 730 X 248 X 40 3500 2190 76 14
Article No. Name Remark
2613522_* Tarpaulin

C3551A LH 200 cm
2623522_* Tarpaulin C3551B LH 200 cm
2633522_* Tarpaulin C3561A LH 200 cm
2643522_* Tarpaulin C3561B LH 200 cm
2653522_* Tarpaulin C3565A LH 200 cm
2663522_* Tarpaulin C3565B LH 200 cm
2673522_* Tarpaulin C3573A LH 200 cm
2683522_* Tarpaulin C3773B LH 200 cm
23127221 Sliding tarpaulin + tensioning ratchet up to 610 cm length
23127201 Sliding tarpaulin + tensioning ratchet from 650 cm length
23127202 Removable centres
23127203 Customs seal
1112019 Folding crank supports
12121202 Height adjustable drawbar
12121201 DIN - Towing eye for height-adjustable drawbar 3000 kg - 3500 kg



demo
demo
demo
demo
demo
demo
demo
demo

Standard equipment:

  • Steel frame welded, hot di ißt Tauchbad feuerverzinkt
  • V-drawbar
  • Anti-slip floor plate
  • 5 or 6 lashing rings mounted countersunk in wooden floor
  • Aluminium drop sides cpl. Removable
  • 13 pin plug
