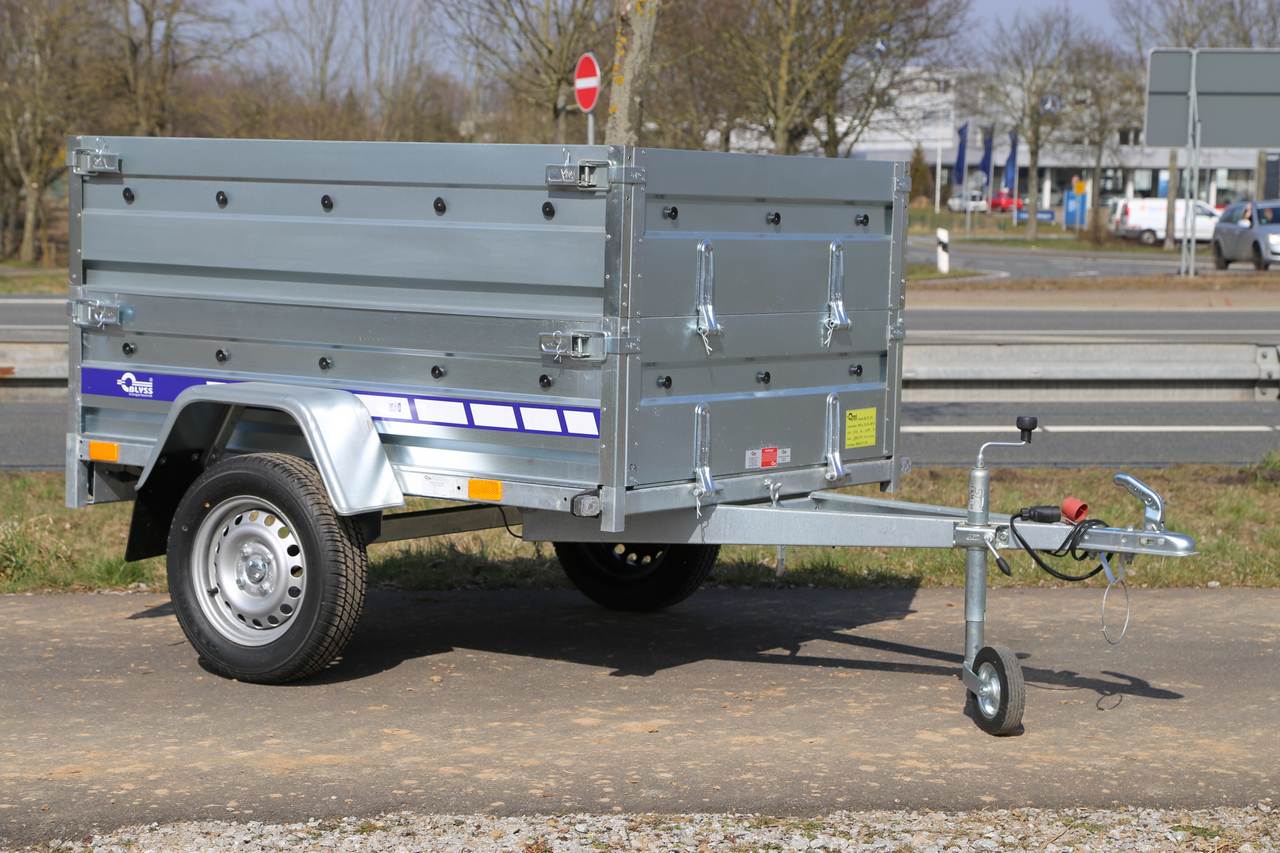

BL- Line

Article No. Model Internal Dimension [LxWxH cm] Gross Weight [kg] Payload [kg] Loading Height [cm] Tyres [Inches]
1317501 BL7515 150 X 100 x 39 750 623 46 13
1327500 BL751712 170 X 125 X 39 750 614 53 13
1337500 BL752012 200 X 125 X 39 750 592 53 13
1347500 BL752313 233 X 133 X 39 750 579 53 13
1347501 BL752313T 233 X 133 X 39 750 579 53 13
1357500 BL752512 250 X 125 X 39 750 576 53 13
1357501 BL752512T 250 X 125 X 39 750 576 53 13
1367501 BL752513 250 X 132 X 39 750 552 53 13
1367502 BL752513T 250 X 132 X 39 750 510 53 13
1377500 BL752612 265 X 125 X 39 750 519 53 13
1377501 BL752612T 265 X 125 X 39 750 519 53 13
Article No. Name Remark
117510 Jockey wheel with assembly parts
117519 Support stands 2 pieces
151752_* Flat tarpaulin

BL751712 BL752012 BL752313 BL752313T
151753_* Tarpaulin H 120 cm BL 752012
152753_*  Tarpaulin H 150 cm BL 752512
153753_* Tarpaulin H 150 cm BL 752313 T
154753_* Tarpaulin H 150 cm BL 752316 T
1517540 Broadside extension H 39cm BL 7515
1527540 Broadside extension H 39cm BL 751712
1537540 Broadside extension H 39cm BL 752512
1547540 Broadside extension H 39cm BL 752612
demo
demo
demo
demo
demo
demo
demo
demo

Standard equipment:

  • Steel frame welded, hot dipped galvanised
  • V-shaped drawbar
  • Ball -coupling
  • Multiplex-wood floor 9mm thick
  • Lashing rings
  • Broadside made of steel
  • Flape ahead with lashrings
  • 7-pin plug
  • preassembled knobs for tarpaulin
  • Rubber spring axle
