Our products

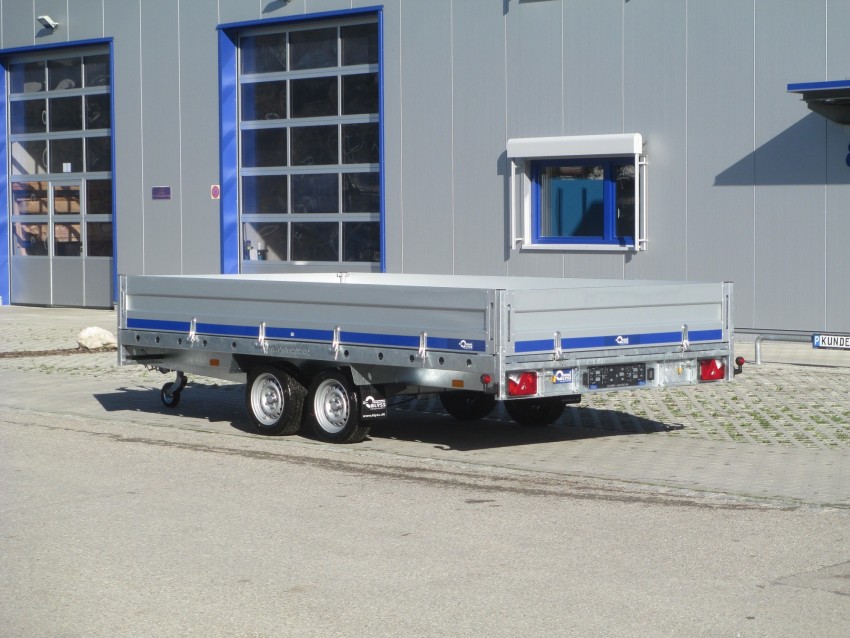

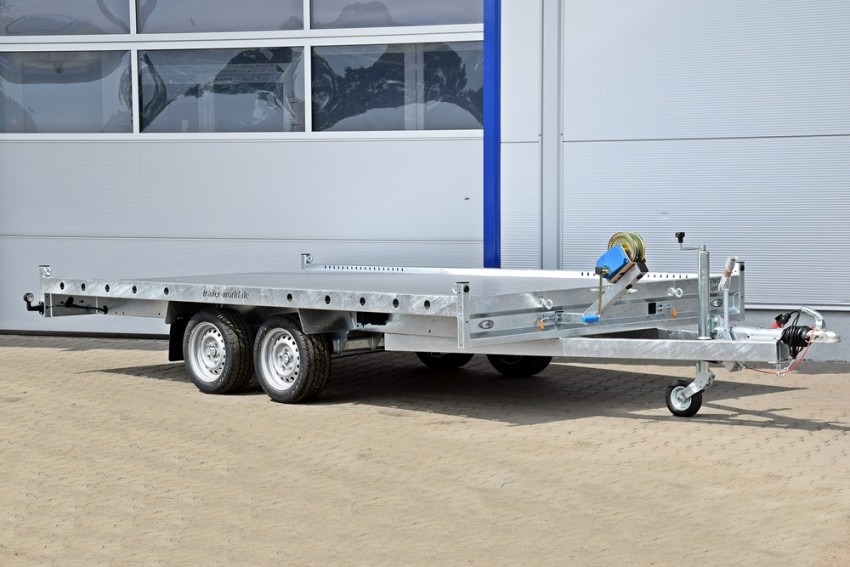

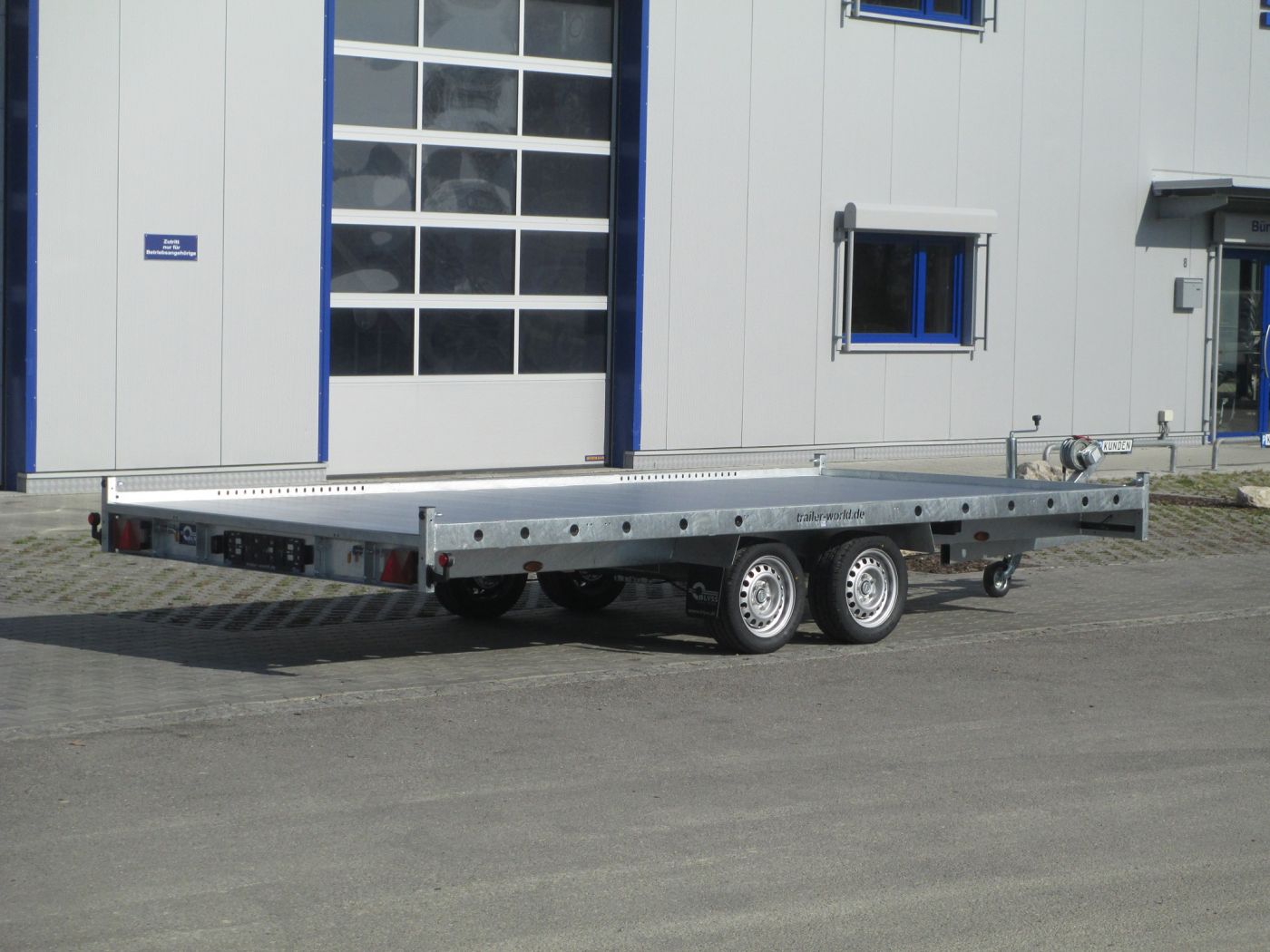

Galaxy

Article No. Model Internal Dimension [LxWxH cm] Gross Weight [kg] Payload [kg] Loading Height [cm] Tyres [Inches]
38127200 Galaxy 402 X 212 X 4 2700 2055 64 13
38230200 Galaxy 402 X 212 X 4 3000 2330 64 13
38430200 Galaxy 402 X 212 X 4 3500 2830 64 13
38627200 Galaxy 460 X 212 X 4 2700 2030 64 13
38330200 Galaxy 460 X 212 X 4 3000 2330 64 13
38530200 Galaxy 460 X 212 X 4 3500 2700 64 13
Article No. Name Remark
14141449 Spare Wheel + Holder 195/50R13C
1414124 Spare Wheel 195/50R13C
1414141 shock absorbers Tandem (couple)
3812720x tarpaulin with frame h=200 cm Galaxy (402x212)
3833020x tarpaulin with frame h=200 cm Galaxy (460x212)
38127210 Aluminium Broadside extension 400 mm Galaxy(402x212)
383302010 Aluminium Broadside extension 400 mm Galaxy (460x212)
1112019 foldable crank supports set
38127201 wheel chocks piece / bar
1414134 winch AL-KO, Typ 1201



Standard equipment:

  • Steel frame welded, hot dipped galvanised
  • V-shaped drawbar
  • Ball -coupling
  • floor made of aluminium plate, slip-resistant
  • Adjustable AL KO winch arm and mounting rail
  • rubber spring axle
  • jockey wheel, automatic

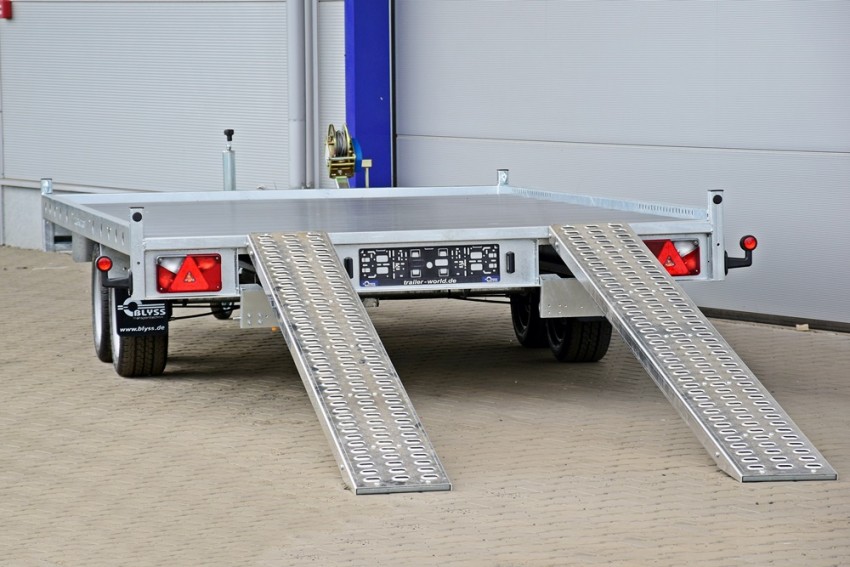

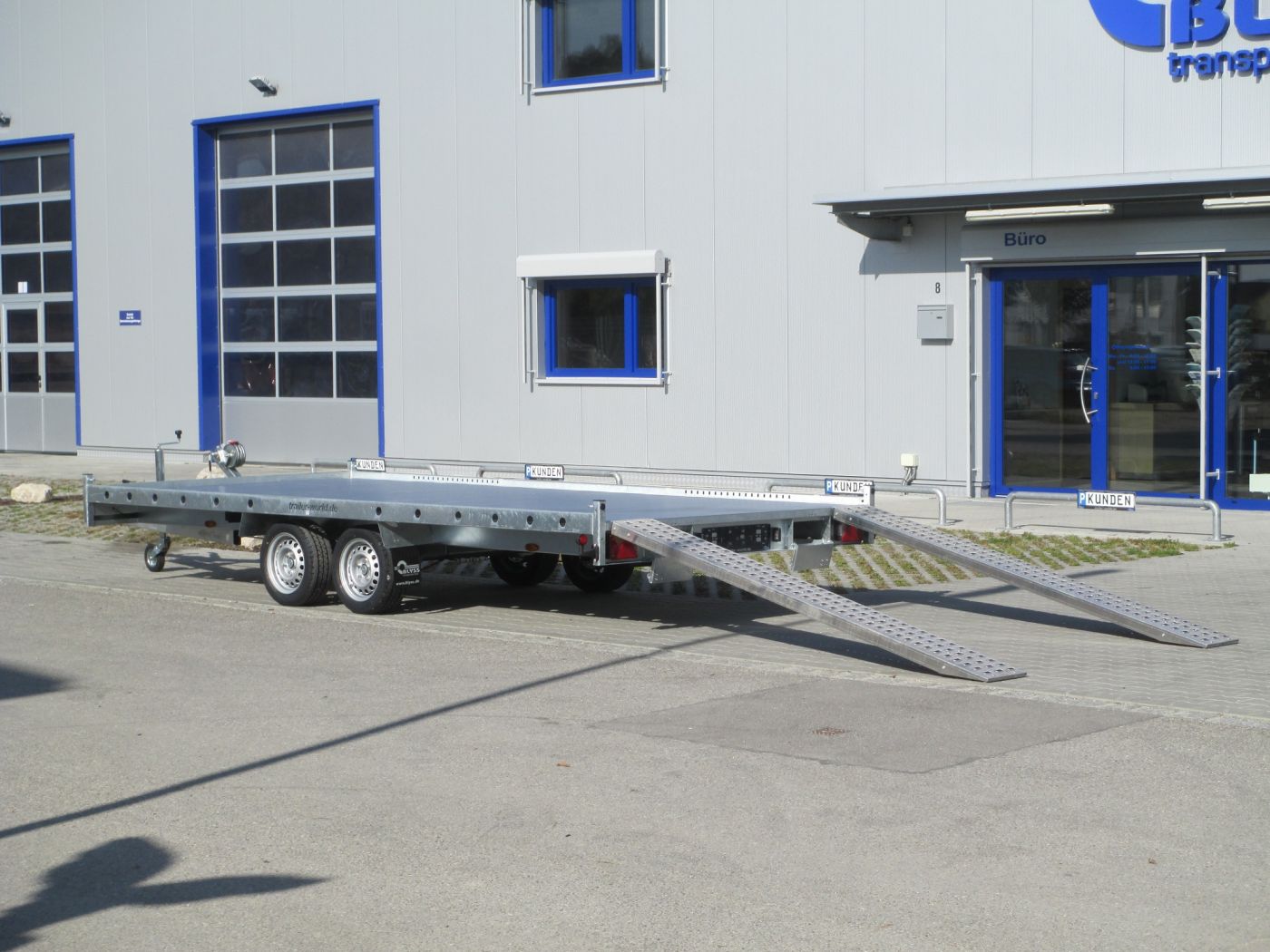

  • drive-up ramps 250 cm long, with cargo schaft
  • securing points, in the corners
  • Steel frame as loading edge h = 4 cm
  • 13-pin plug
