Atlas

Article No. Model Internal Dimension [LxWxH cm] Gross Weight [kg] Payload [kg] Loading Height [cm] Tyres [Inches]
031132740202 Atlas 40/27 406 X 200 2700 2065 63 13
031132745202 Atlas 45/27 450 X 200 2700 1980 63 13
031132750202 Atlas 50/27 500 X 200 2700 1930 63 13
031133040202 Atlas 40/30 406 X 200 3000 2300 63 13
031133045202 Atlas 45/30 450 X 200 3000 2260 63 13
031133050202 Atlas 50/30 500 X 200 3000 2200 63 13
031133540202 Atlas 40/35 406 X 200 3500 2780 63 13
031133545202 Atlas 45/35 450 X 200 3500 2730 63 13
031133550202

Atlas 50/35

 500 X 200 3500 2680 63 13
031133060222 Atlas ll 600 X 220 X 200 3000 1880 66 13
Article No. Name Remark

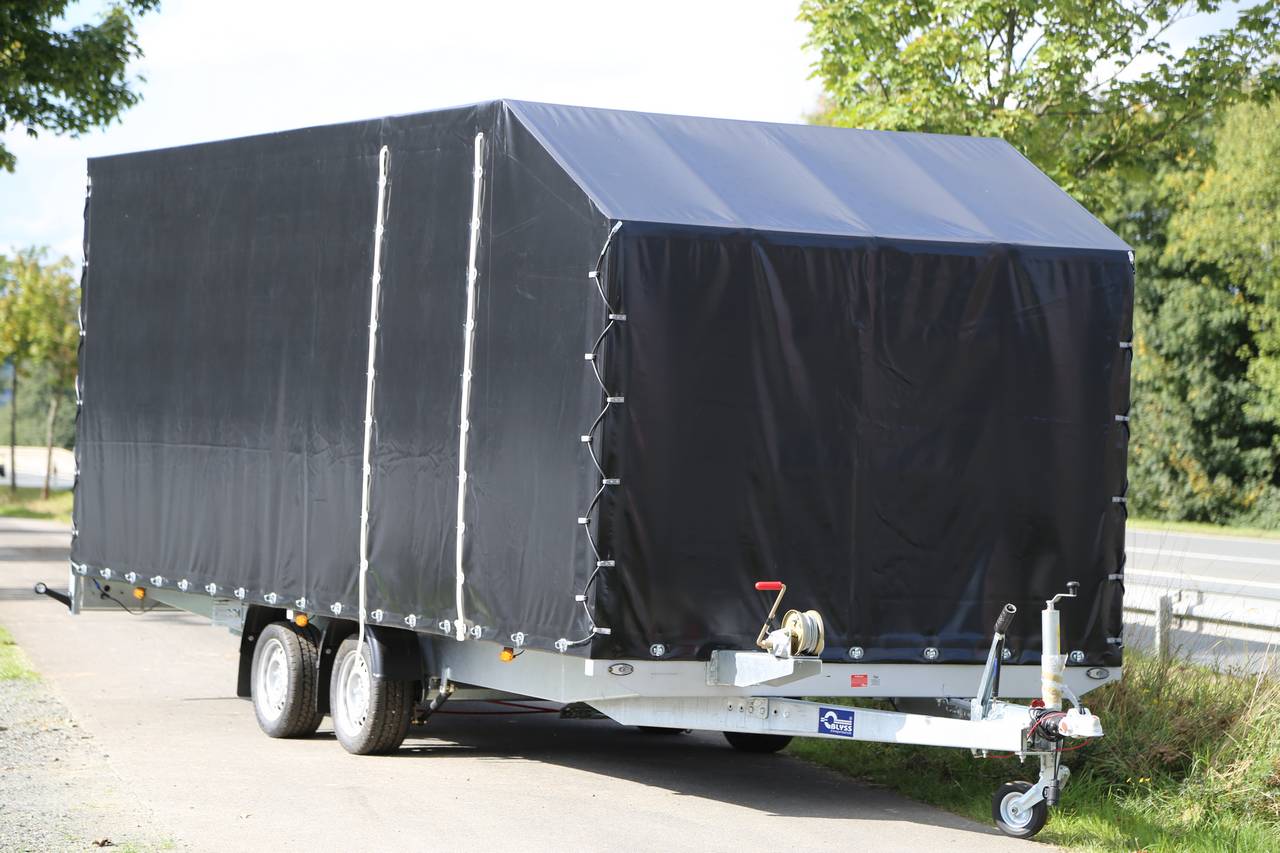

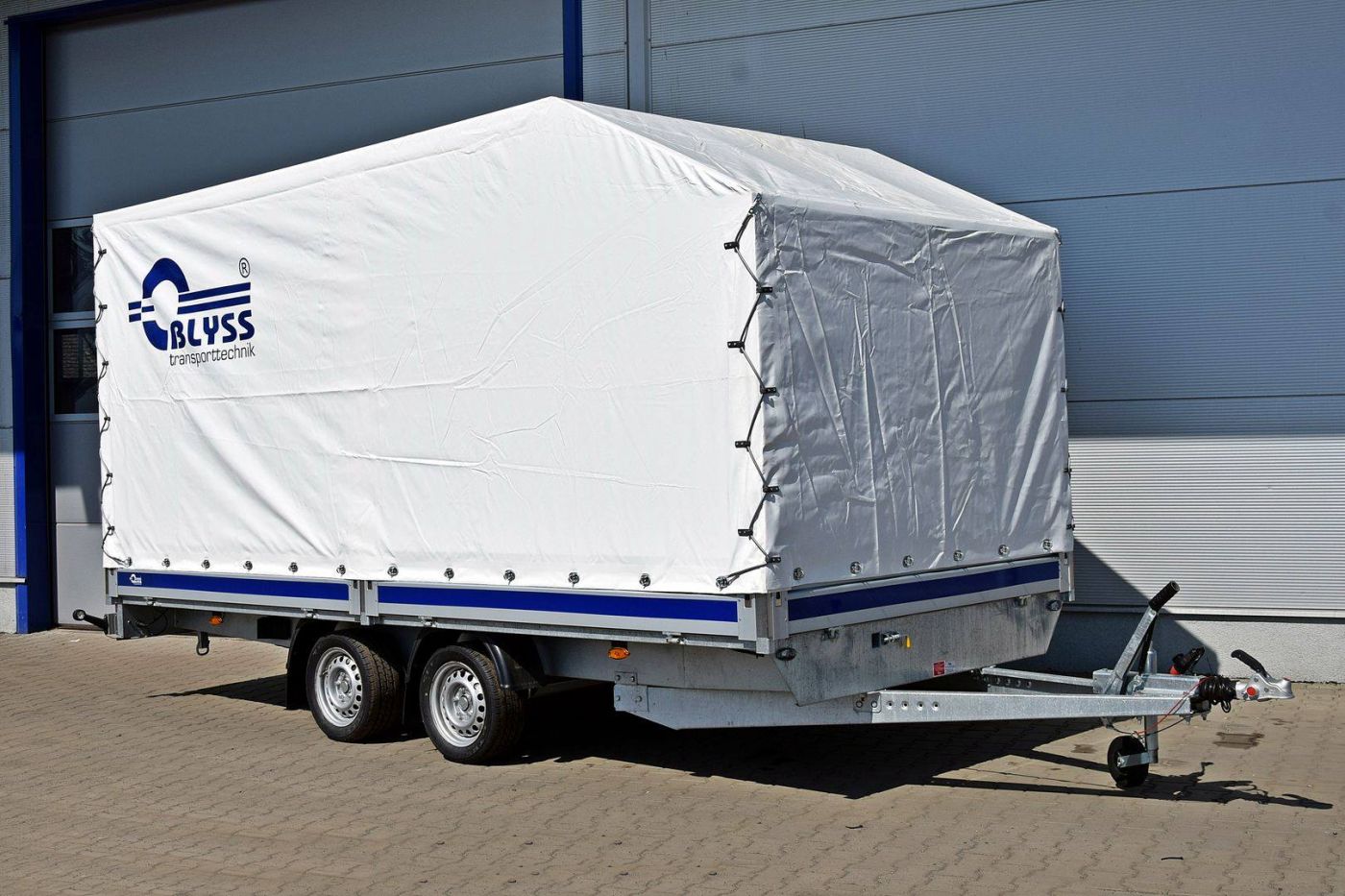

35012722_* Tarpaulin for 400 cm length  LH 200 cm
35032722_* Tarpaulin for 450 cm length  LH 200 cm
35042722_* Tarpaulin for 500 cm length  LH 200 cm
2424241 Aerodynamic tarpaulin in front
1414148 Folding panel sideways ( Atlas ll ) max. 300 cm with gas pressure damper
350127210 Aluminium drop sides for 400 cm length
350527210 Aluminium drop sides for 450 cm length
350627210 Aluminium drop sides for 500 cm length
14141411 Spare wheel
1414141 Wheel shock absorber incl. 100 km/h confirmation
demo
demo
demo
demo
demo
demo
demo
demo
demo

Standard equipment:

  • Steel frame welded and galvanised
  • V - Drawbar
  • Railing

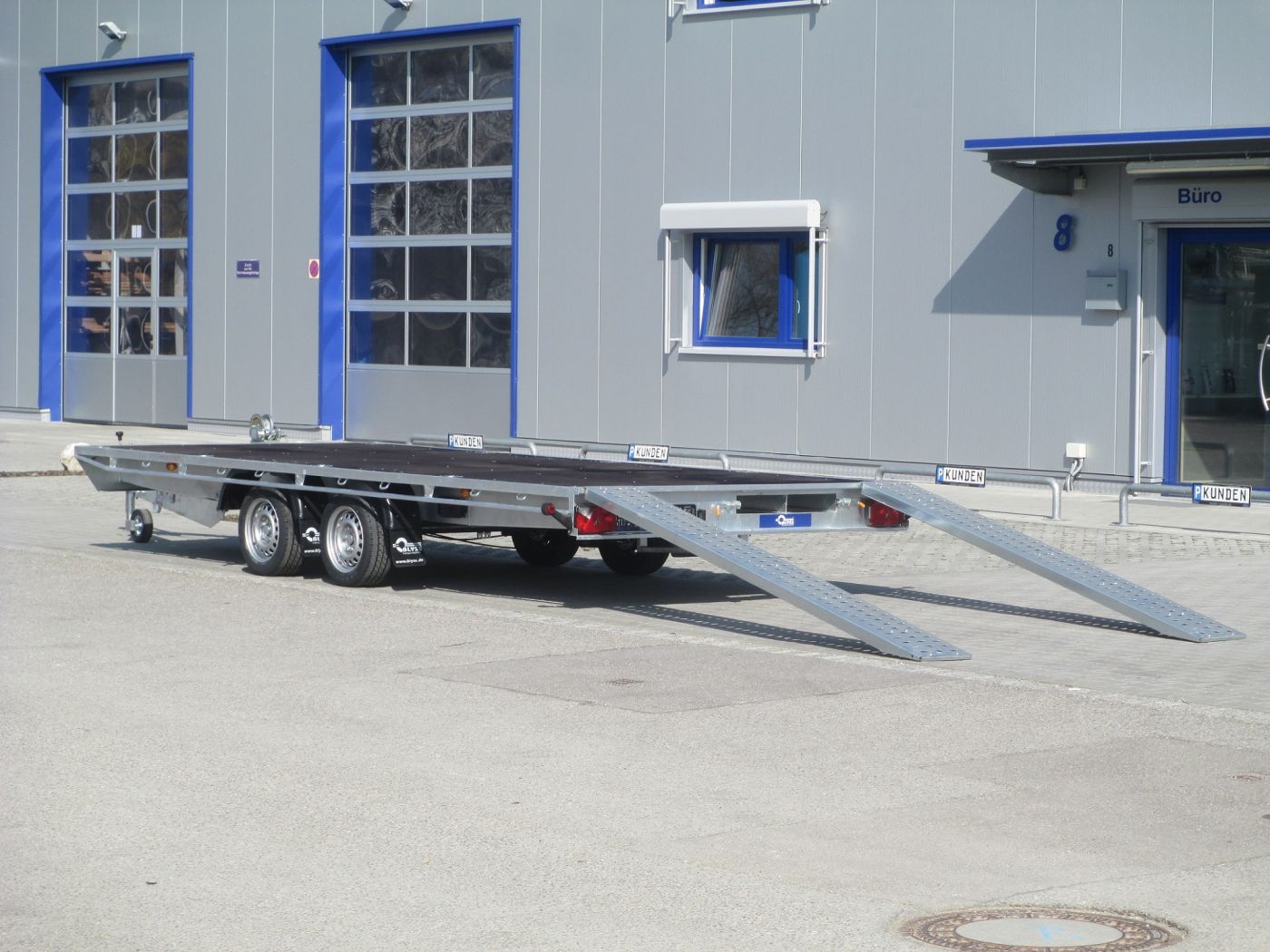

  • Drive-on rails pushed in under the loading area
  • Lashing rings integrated in the V outer frame profile
  • Winch stand with winch
  • Multiplex base plate
  • Jockey wheel
  • 13 - pin plug
