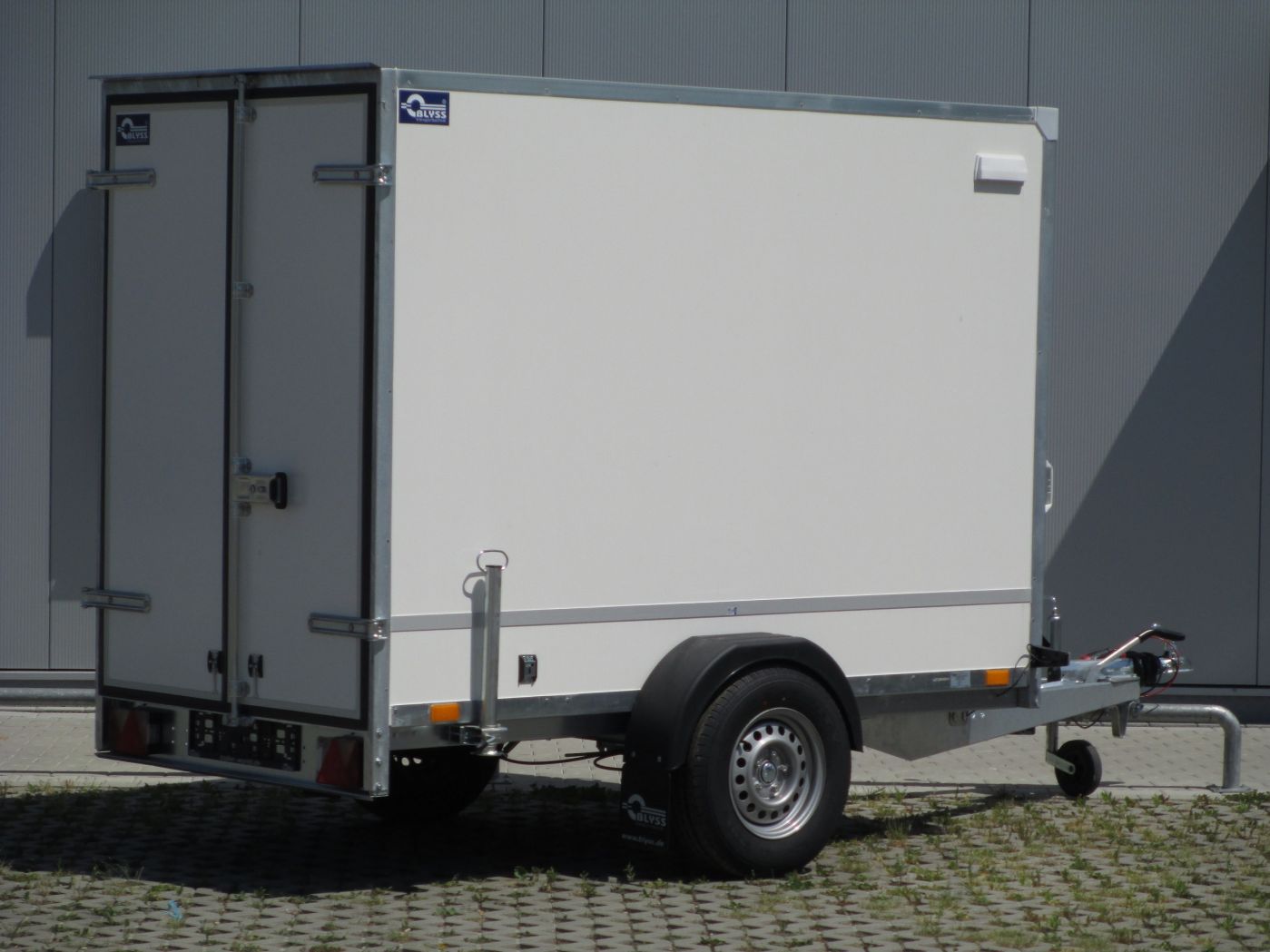

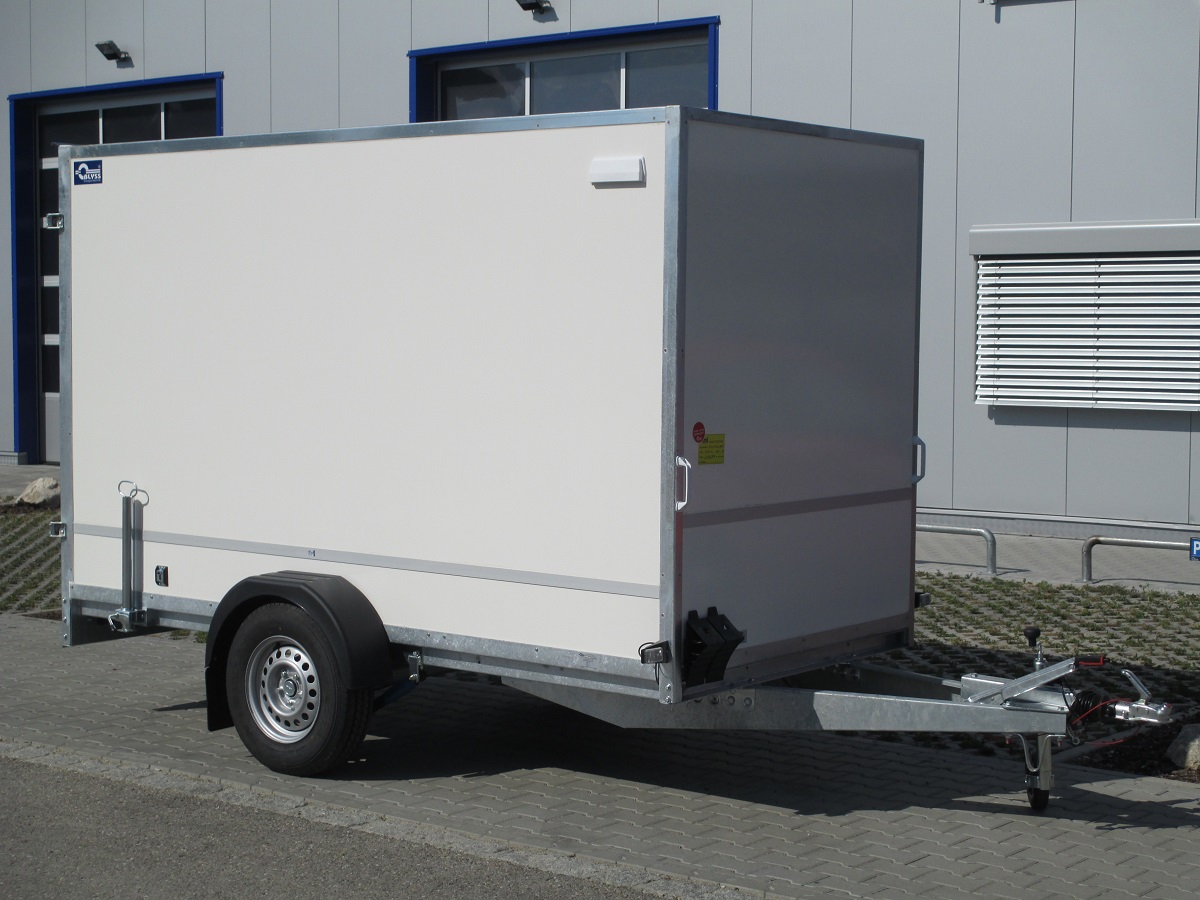

Box trailers plywood
Article No. | Model | Broadside | Internal Dimension [LxWxH cm] | Gross Weight [kg] | Unladen Weight [kg] | Loading Height [cm] | Tyres [Inches] |
51175100 | F7520D | plywood | 204x115x125 | 750 | 450 | 53 | 13 |
52175100 | F7520HD | plywood | 204x115x125 | 750 | 450 | 53 | 13 |
53275100 | F7520D | plywood | 204x115x150 | 750 | 430 | 55 | 13 |
54275100 | F7520D ramp gate | plywood | 204x115x150 | 750 | 430 | 53 | 13 |
55275100 | F7520HD | plywood | 204x115x150 | 750 | 430 | 55 | 13 |
56275100 | F7520HD ramp gate | plywood | 204x115x150 | 750 | 430 | 55 | 13 |
56275101 | F752413.11D | plywood | 248x135x150 | 750 | 400 | 55 | 13 |
56275102 | F752413.11HD | plywood | 248x135x150 | 750 | 400 | 55 | 13 |
56275103 | F752415.11D | plywood | 248x150x150 | 750 | 400 | 55 | 13 |
56275104 | F752415.11HD | plywood | 248x150x150 | 750 | 400 | 55 | 13 |
56313100 | F1326HD | plywood | 262x130x150 | 1300 | 805 | 50 | 13 |

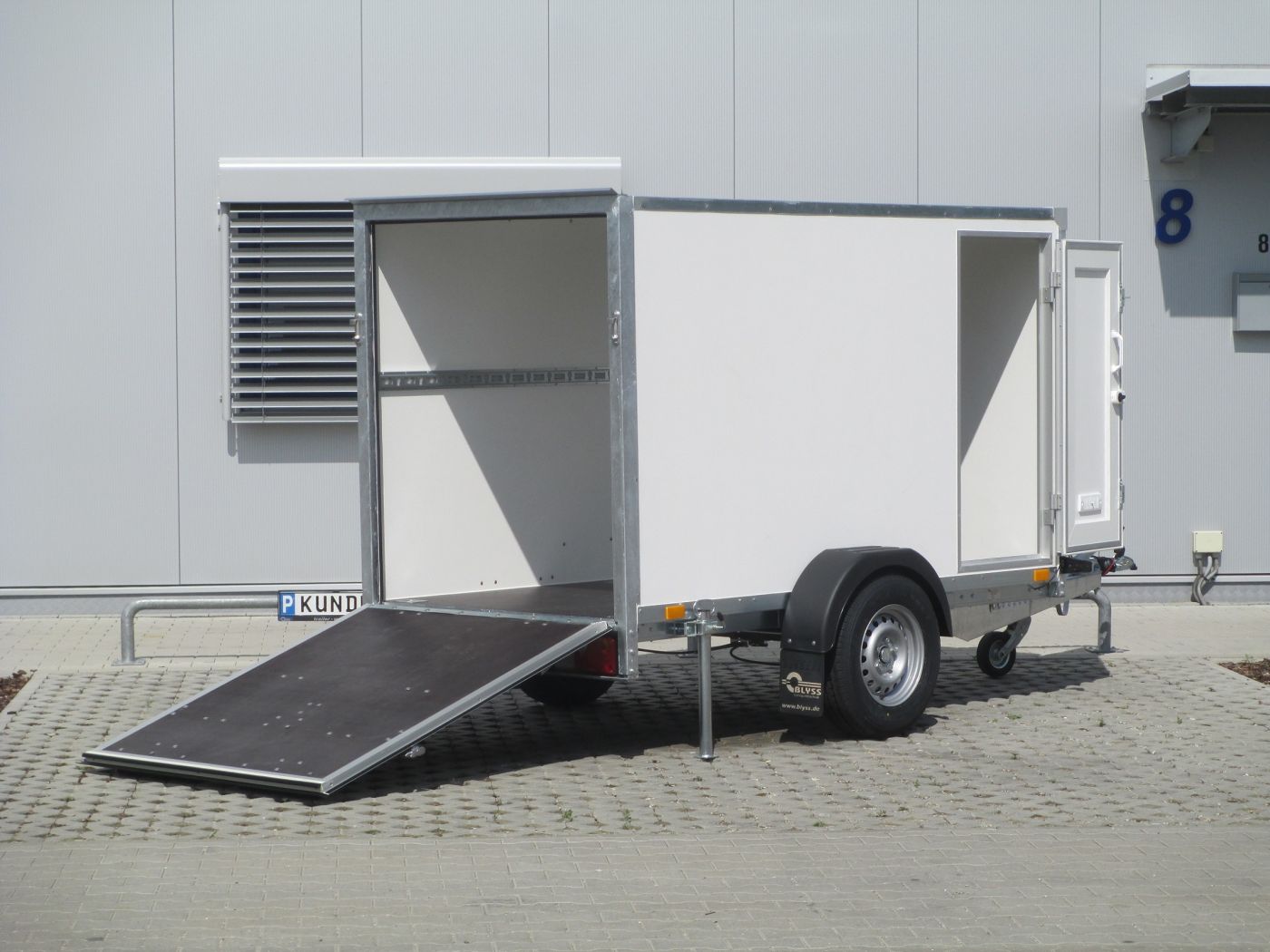

57313100 | F1326HD ramp gate | plywood | 262x130x150 | 1300 | 805 | 50 | 13 |
57413100 | F1526HD /150 | plywood | 262x135x150 | 1500 | 1005 | 50 | 13 |
58413100 | F1326HD | plywood | 262x130x180 | 1300 | 745 | 50 | 13 |
59413100 | F1326HD ramp gate | plywood | 262x130x180 | 1300 | 745 | 50 | 13 |
510513100 | F1330HD | plywood | 305x146x180 | 1300 | 700 | 52 | 13 |
511513100 | F1330HD ramp gate | plywood | 305x146x180 | 1300 | 700 | 52 | 13 |
512613100 | F1336HD | plywood | 358x146x180 | 1300 | 640 | 50 | 13 |
513613100 | F1336HD ramp gate | plywood | 358x146x180 | 1300 | 640 | 50 | 13 |
514520200 | F2030HTD | plywood | 305x146x180 | 2000 | 1350 | 50 | 13 |
515520200 | F2030HTD ramp gate | plywood | 305x 146x180 | 2000 | 1350 | 50 | 13 |
516527200 | F2730HTD | plywood | 305x146x180 | 2700 | 2050 | 52 | 13 |
517527200 | F2730HTD ramp gate | plywood | 305x146x180 | 2700 | 2050 | 52 | 13 |
518720200 | F2036HTD | plywood | 358x151x180 | 2000 | 1300 | 50 | 13 |
519620200 | F2036HTD ramp gate | plywood | 358x146x180 | 2000 | 1300 | 50 | 13 |
520627200 | F2736HTD | plywood | 358x146x180 | 2700 | 1850 | 50 | 13 |
521627200 | F2736HTD ramp gate | plywood | 358x146x180 | 2700 | 1850 | 50 | 13 |
Article No. | Name | Remark |

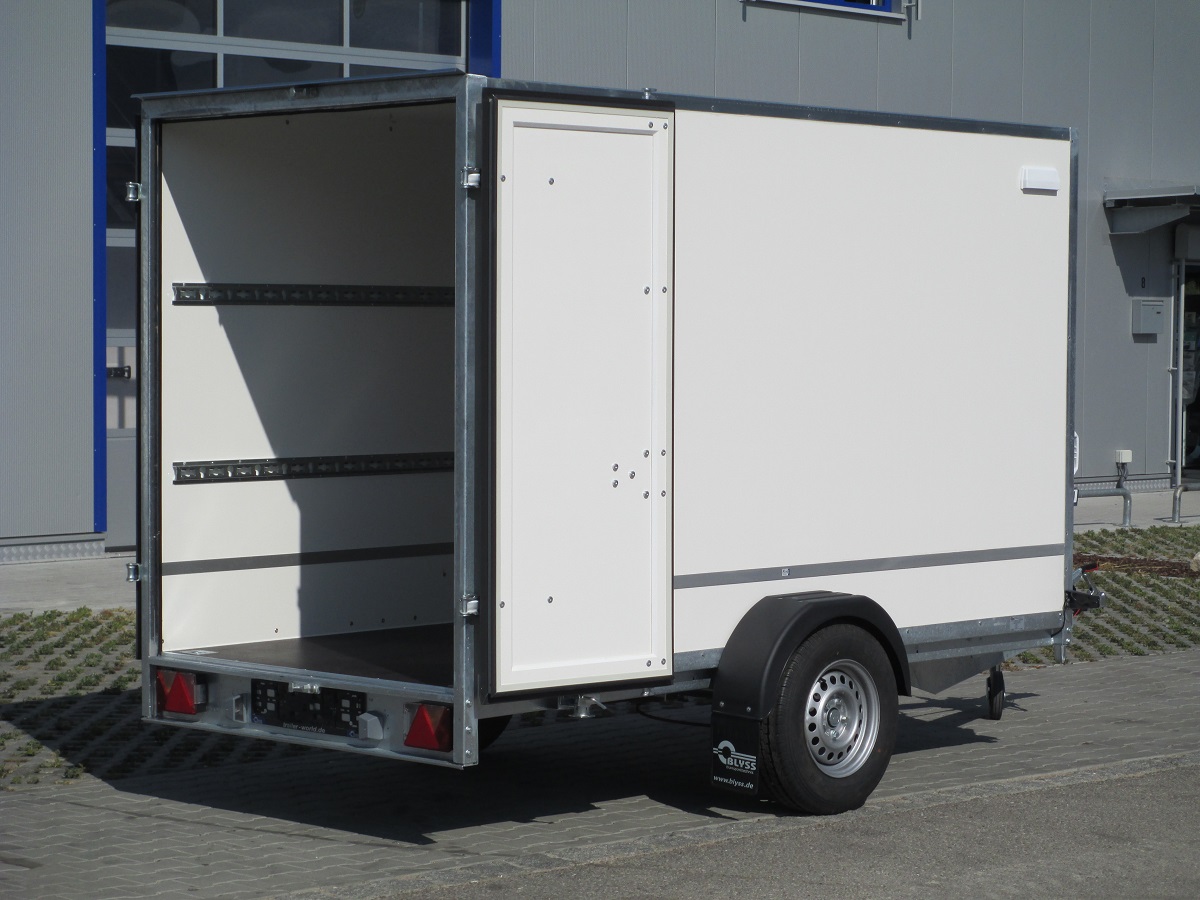

51175101 | side door | piece |

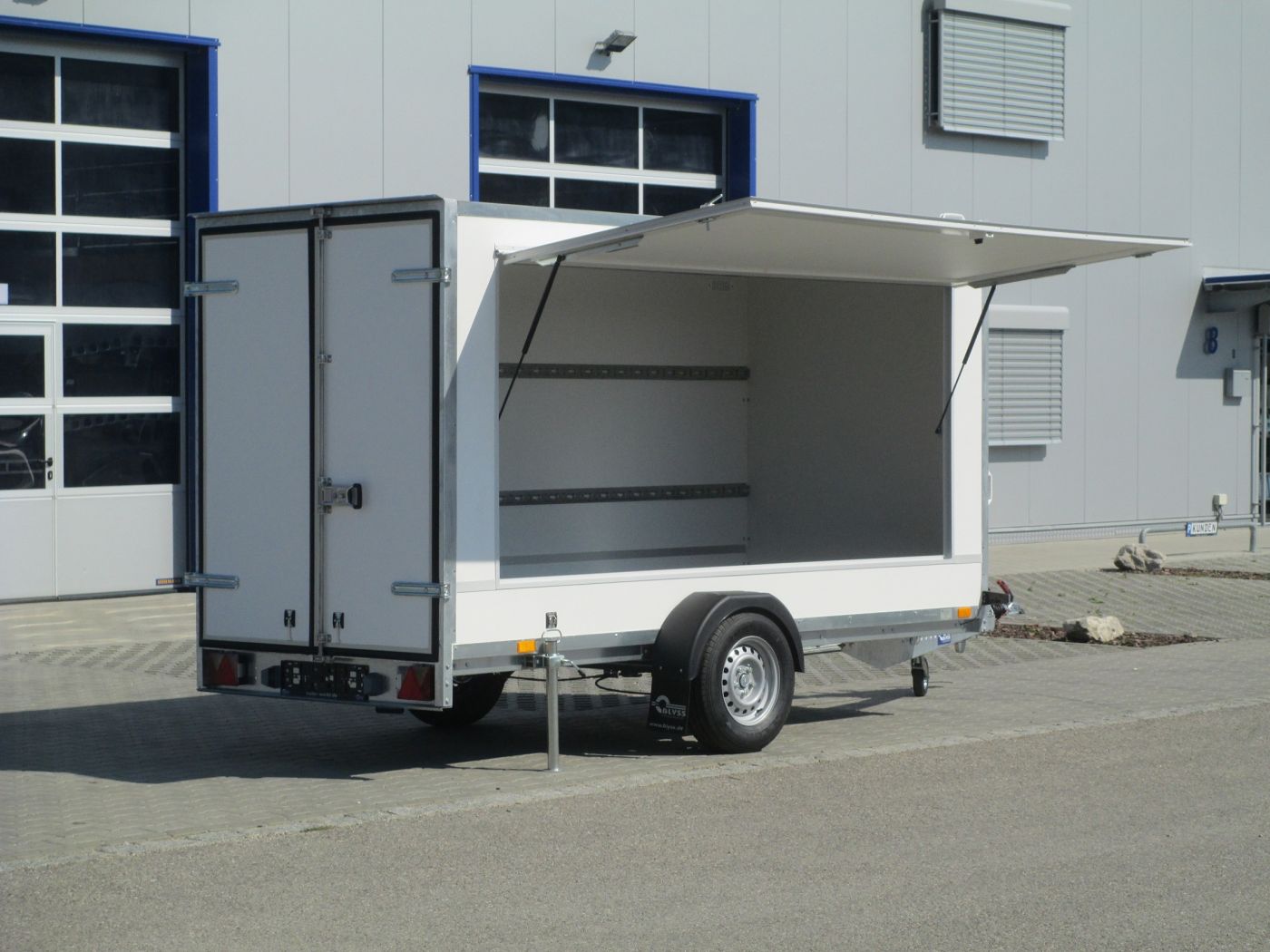

51175102 | sales flap | F7520 |
51175103 | sales flap | F1326 |
5117504 | sales flap | F1330 |
5117505 | sales flap | 4,1 m |

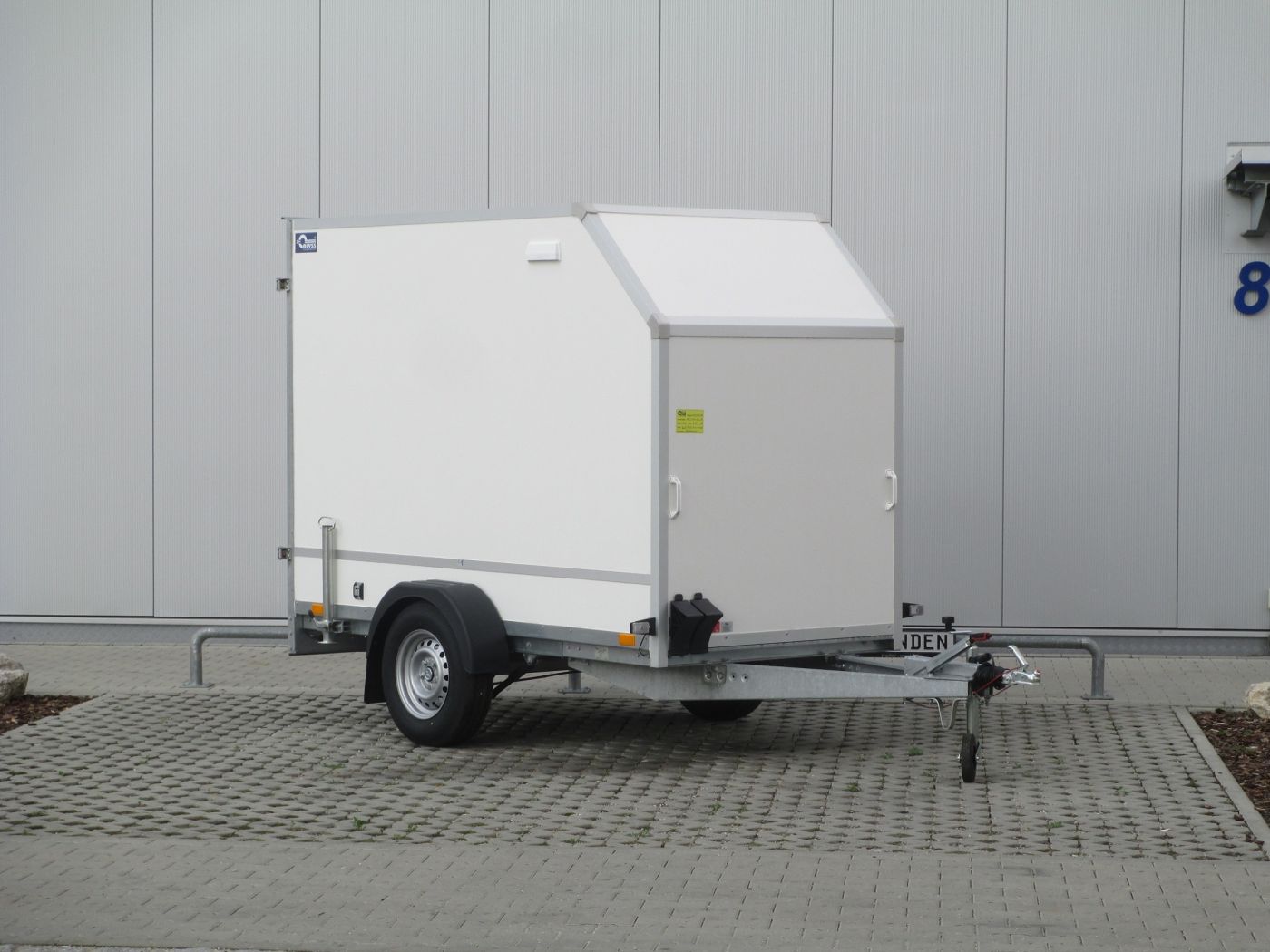

51175104 | curved front | Aero 50x50 |
14141000 | anty-sway coupling | 2700 and 3000 kg |
14141001 | anty-sway coupling | 3500 kg |
14141002 | lighting | LED |
5127501 | window | 800x350 |
5127502 | window | 800x500 |
5127503 | window | 900x550 |
5127504 | window | 1200x540 |
5127505 | window | 1200x600 |
5127506 | window shade +flyscreen | for window800x500 |
5127507 | window shade +flyscreen | for window 1200x600 |
999991 | COC Documents |
Standard equipment:
- 13 -pin plug
- Steel frame welded, hot dipped galvanised
- V-shaped drawbar
- Ball -coupling
- Multiplex-wood floor
- Lashing rings integrated in floor plate
- cargo rails, two each side
- plywood side walls, white
- Lockable hinged doors, complete with door stay
- interior panelling: white
- Rubber spring axle
- propstands
- wheel chocks
- shock absorbers + 100km/h approval
- side wall air vent
- jockey wheel, automatic
