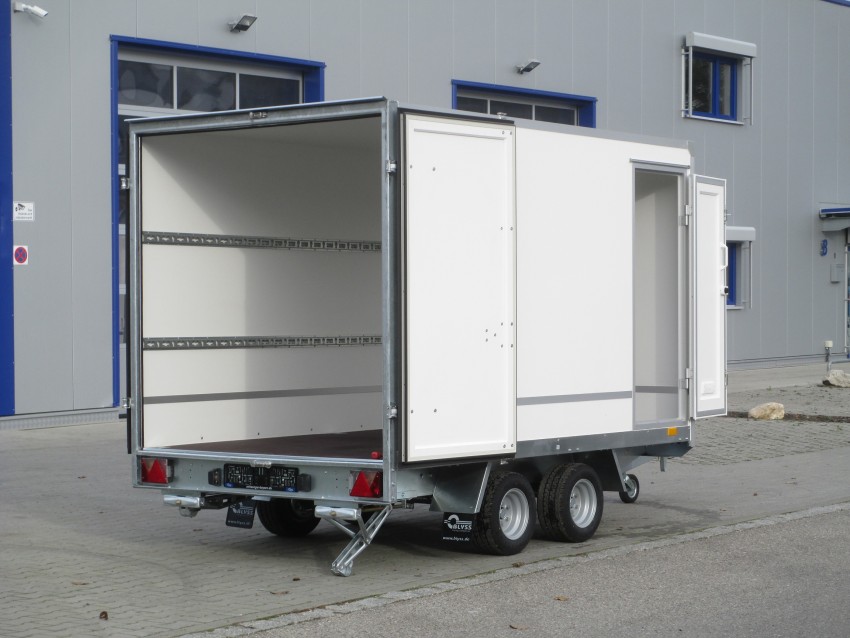

Box trailers high bed

Article No. Model Broadside Internal Dimension [LxWxH cm] Gross Weight [kg] Unladen Weight [kg] Loading Height [cm] Tyres [Inches]
522113100 FC1326HD Wood 260x160x180 1300 745 60 10
522113101 FC1326HD ramp gate Wood 260x160x180 1300 745 60 10

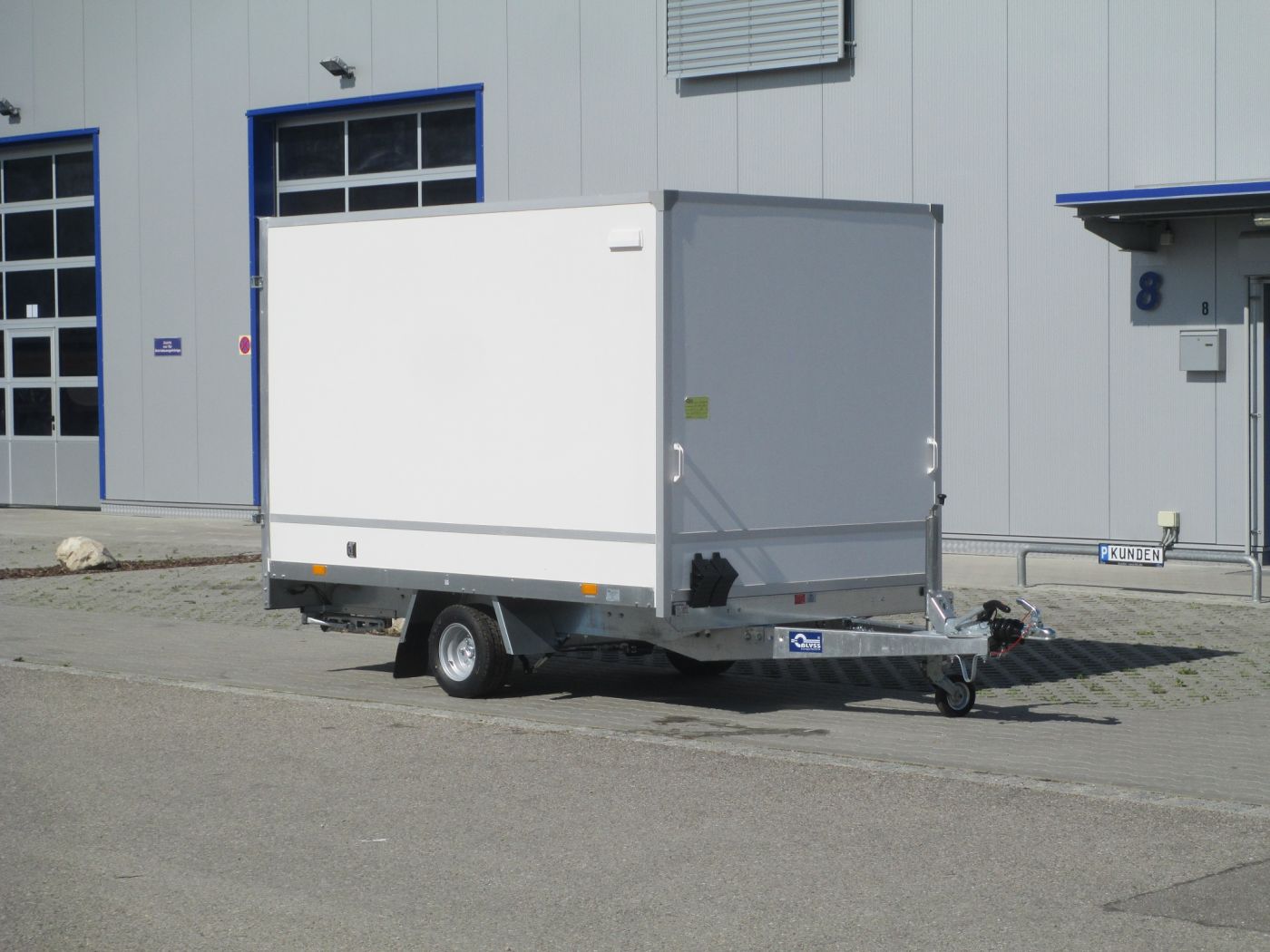

523213100 FC1330HD Wood 300x180x180 1300 745 60 10
523213101 FC1330HD ramp gate Wood 300x180x180 1300 745 60 10
523213102 FC1336HD Wood 360x180x180 1300 745 60 10
523213103 FC1336HD ramp gate Wood 360x180x180 1300 745 60 10
524320200 FC2026HD Wood 260x160x180 2000 1200 60 10
524320201 FC2026HD ramp gate Wood 260x160x180 2000 1200 60 10

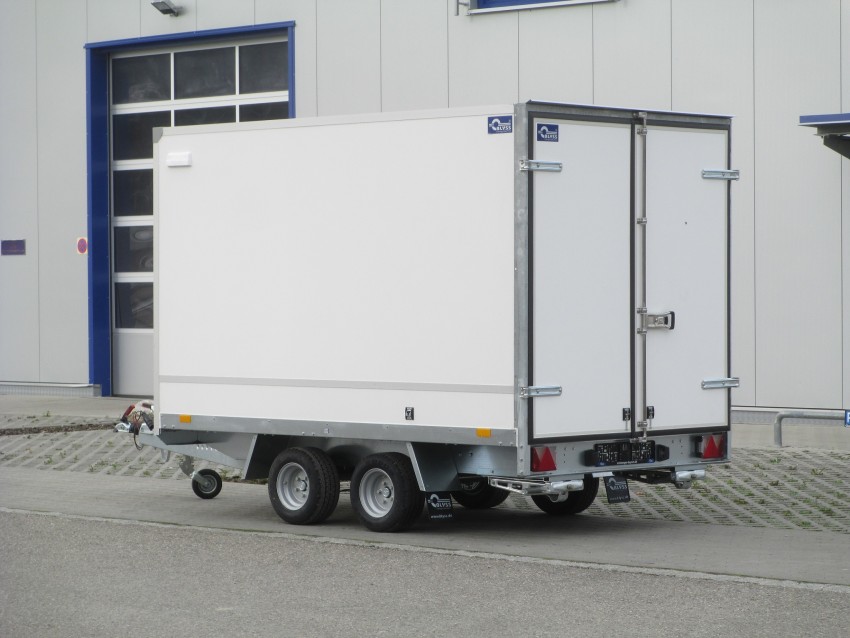

525420200 FC2030HTD Wood 300x180x180 2000 1200 60 10
525420201 FC2030HD ramp gate Wood 300x180x180 2000 1200 60 10
525420202 FC2036 HD Wood 360x180x180 2000 1200 60 10

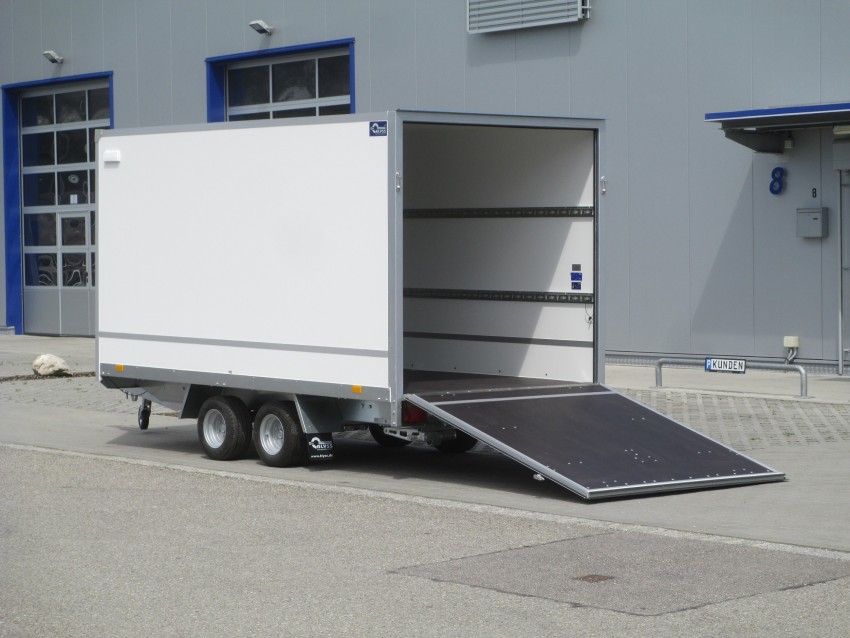

524420203 FC2036HD ramp gate Wood 360x180x180 2000 1200 60 10
526527200 FC2726HD Wood 260x160x180 2700 1830 60 10
526527201 FC2726HD ramp gate Wood 260x160x180 2700 1830 60 10
527627200 FC2730HD Wood 300x180x180 2700 1830 60 10
527627201 FC2730HD ramp gate Wood 300x180x180 2700 1830 60 10
527627202 FC2736HD Wood 360x180x180 2700 1830 60 10
527627203 FC2736HD ramp gate Wood 360x180x180 2700 1830 60 10
528113200 FC1326HD Sandwich 260x160x180 1300 745 60 10
528213201 FC1326HD ramp gate Sandwich 260x160x180 1300 745 60 10
528313200 FC1330HD Sandwich 300x180x180 1300 745 60 10
528313201 FC1330HD ramp gate Sandwich 300x180x180 1300 745 60 10
528413200 FC1336HD Sandwich 360x180x180 1300 745 60 10
528413201 FC1336HD ramp gate Sandwich 360x180x180 1300 745 60 10
528520200 FC2026HD Sandwich 260x160x180 2000 1200 60 10
528520201 FC2026HD ramp gate Sandwich 260x160x180 2000 1200 60 10
528620200 FC2030HTD Sandwich 300x180x180 2000 1200 60 10
528620201 FC2030HD ramp gate Sandwich 300x180x180 2000 1200 60 10
528720200 FC2036HD Sandwich 360x180x180 2000 1200 60 10
528720201 FC2036HD ramp gate Sandwich 360x180x180 2000 1200 60 10
528827200 FC2726HD Sandwich 260x160x180 2700 1830 60 10
528727201 FC2726HD ramp gate Sandwich 260x160x180 2700 1830 60 10
528827200 FC2730HD Sandwich 300x180x180 2700 1830 60 10
528827201 FC2730HD ramp gate Sandwich 300x180x180 2700 1830 60 10
528927200 FC2736HD Sandwich 360x180x180 2700 1830 60 10
528927201 FC2736HD ramp gate Sandwich 360x180x180 2700 1830 60 10
529127200 FC2740HD Sandwich 400x200x200 2700 1830 60 10
529127201 FC2740HD ramp gate Sandwich 400x200x200 2700 1830 60 10
529227200 FC2742HD Sandwich 420x200x200 2700 1830 60 10
529227201 FC2742HD ramp gate Sandwich 420x200x200 2700 1830 60 10
Article No. Name Remark
51175101 side door piece

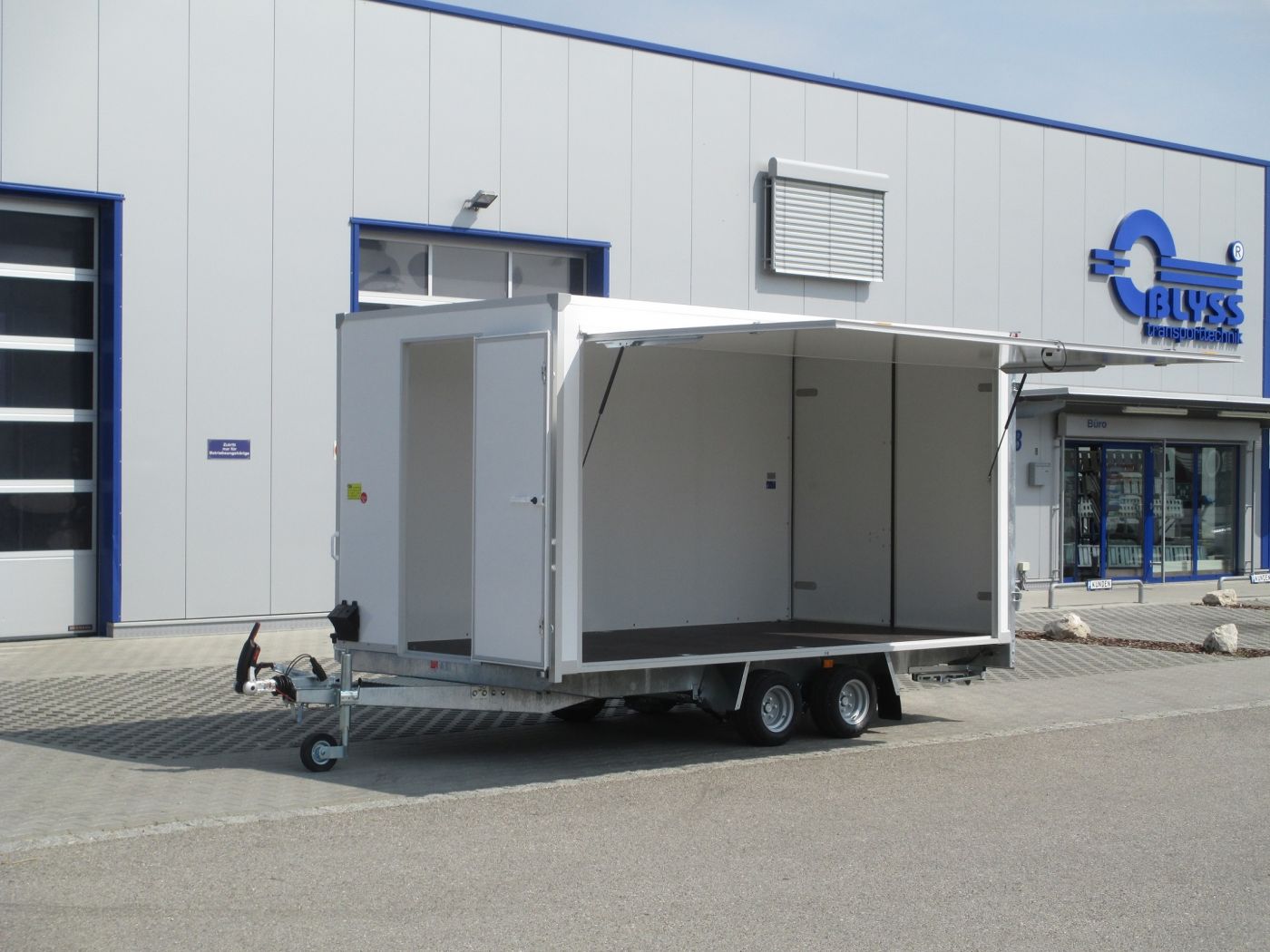

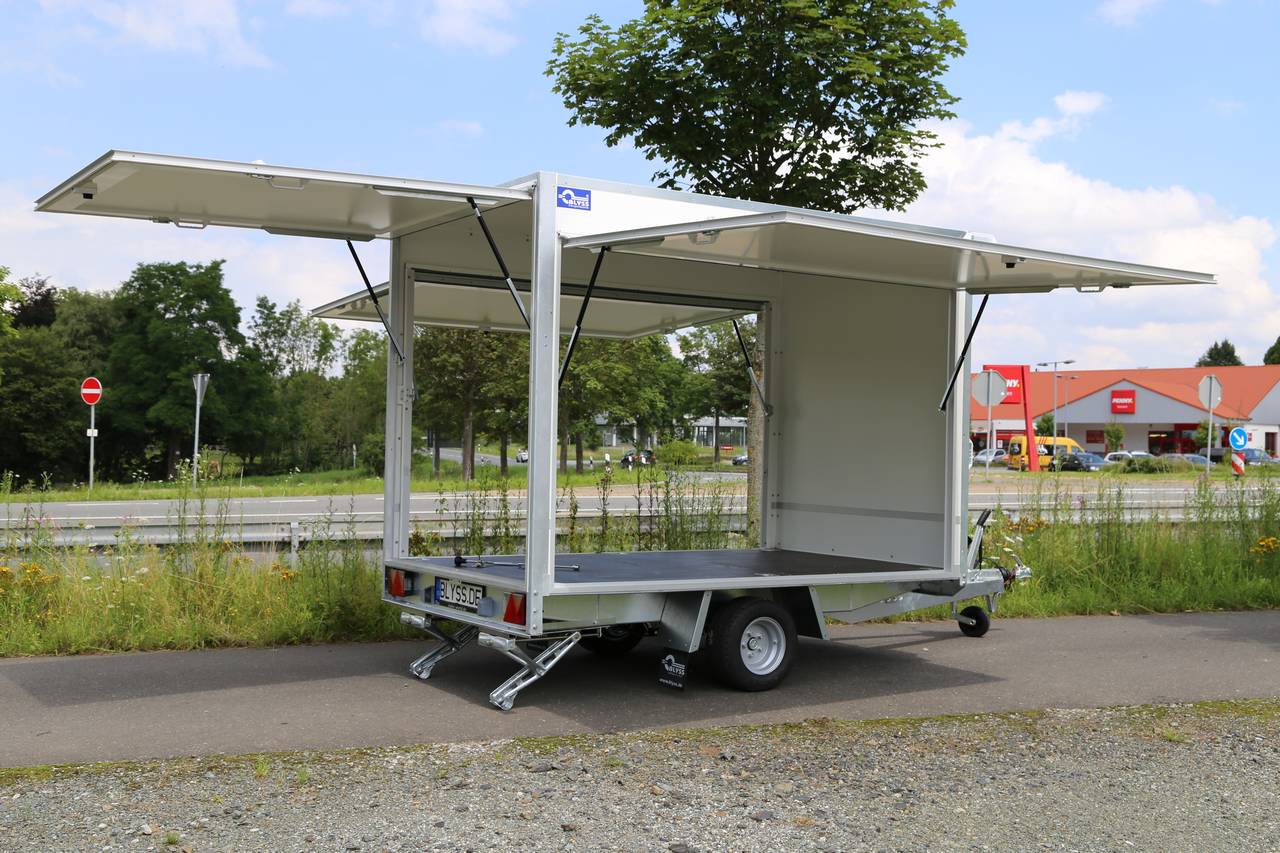

51175102 sales flap 2,6 m
51175103 sales flap 3 m
5117504 sales flap 3,6 m
5117505 sales flap 4,1 m
51175104 curved front Aero 50x50
14141000 anty-sway coupling 2700 and 3000 kg
14141001 anty-sway coupling 3500 kg
14141002 lighting LED
5127501 window 800x350
5127502 window 800x500
5127503 window 900x550
5127504 window 1200x540
5127505 window 1200x600
5127506 window shade +flyscreen for window800x500
5127507 window shade +flyscreen for window 1200X600
999991 COC Documents
demo
demo
demo
demo
demo
demo
demo
demo
demo

Standard equipment:

  • 13 –pin plug
  • Steel frame welded, hot dipped galvanised
  • V-shaped drawbar
  • Ball -coupling
  • Multiplex-wood floor
  • Lashing rings integrated in floor plate
  • cargo rails, two each side
  • side wallsmade of wood
  • Lockable hinged doors, complete with door stay
  • interior panelling: white
  • Rubber spring axle
  • propstands
  • wheel chocks
  • shock absorbers + 100km/h approval
  • side wall air vent
  • jockey wheel, automatic
