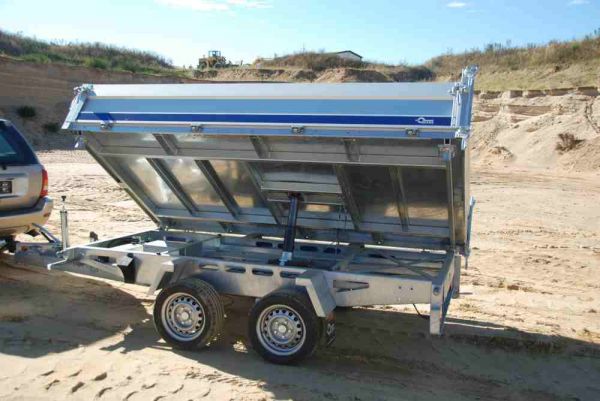

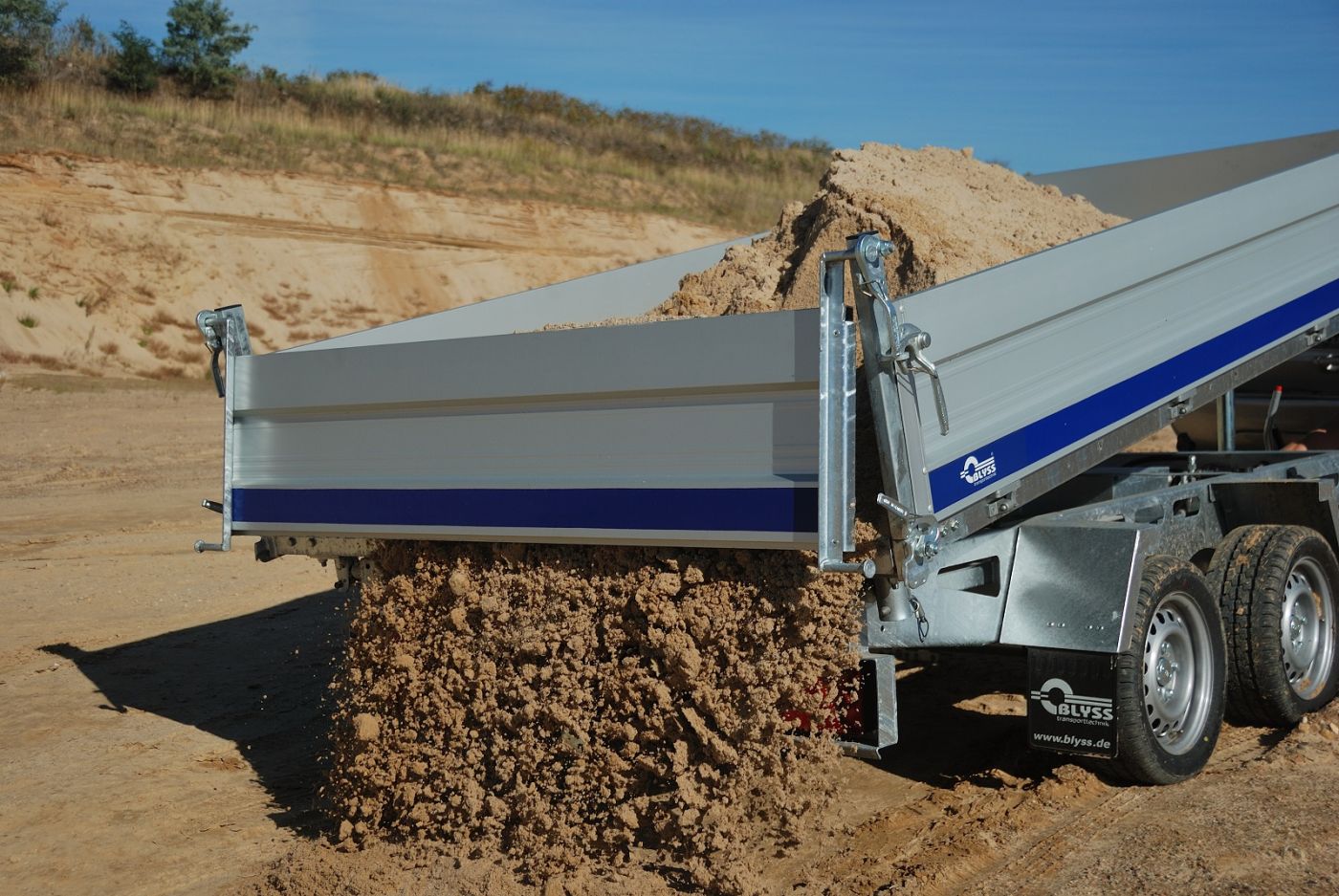

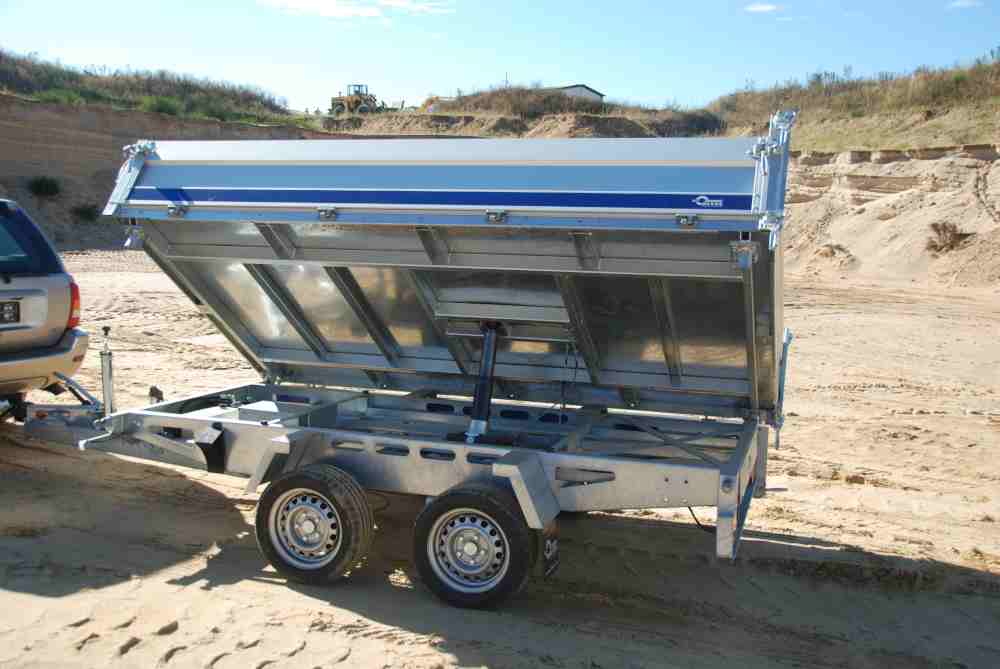

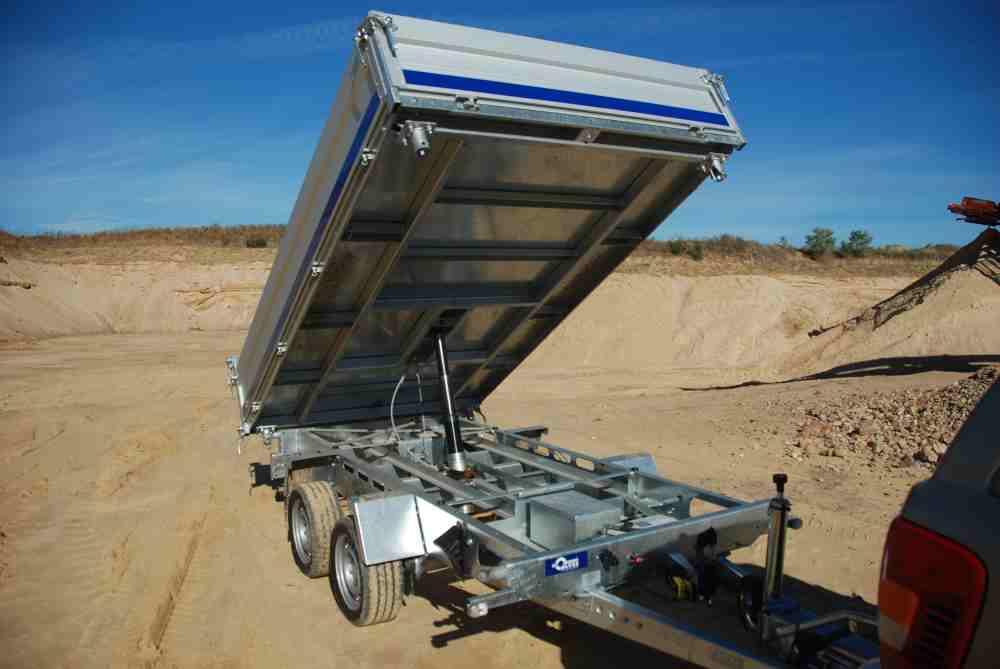

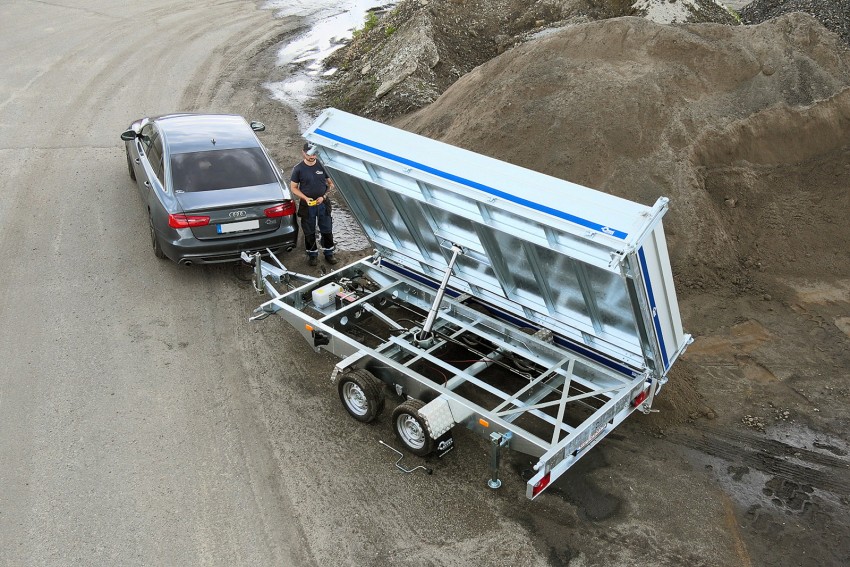

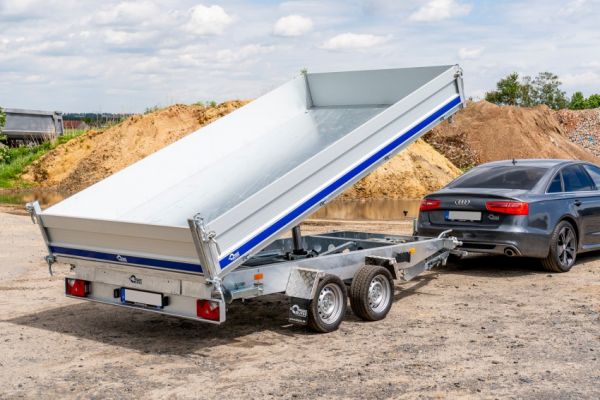

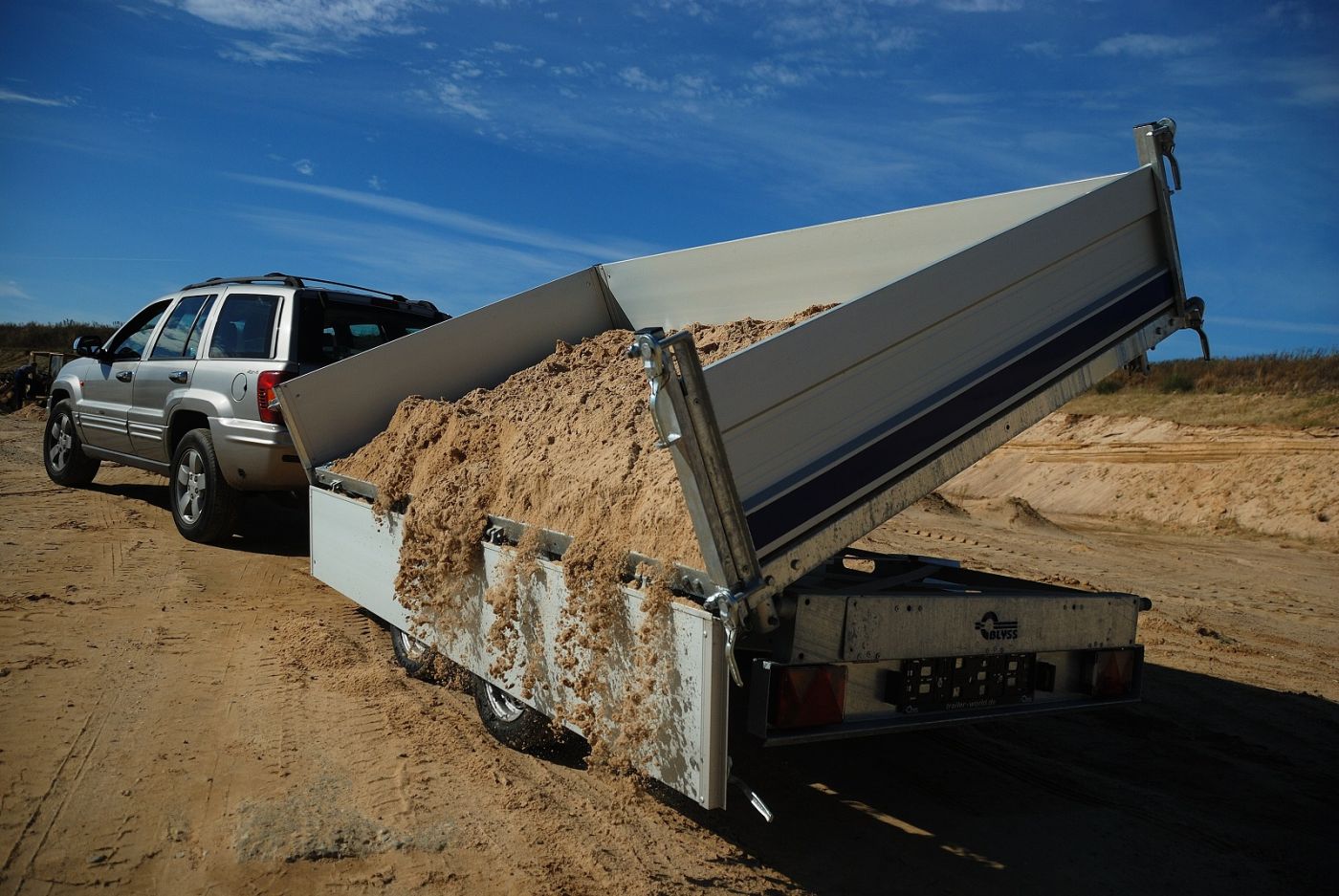

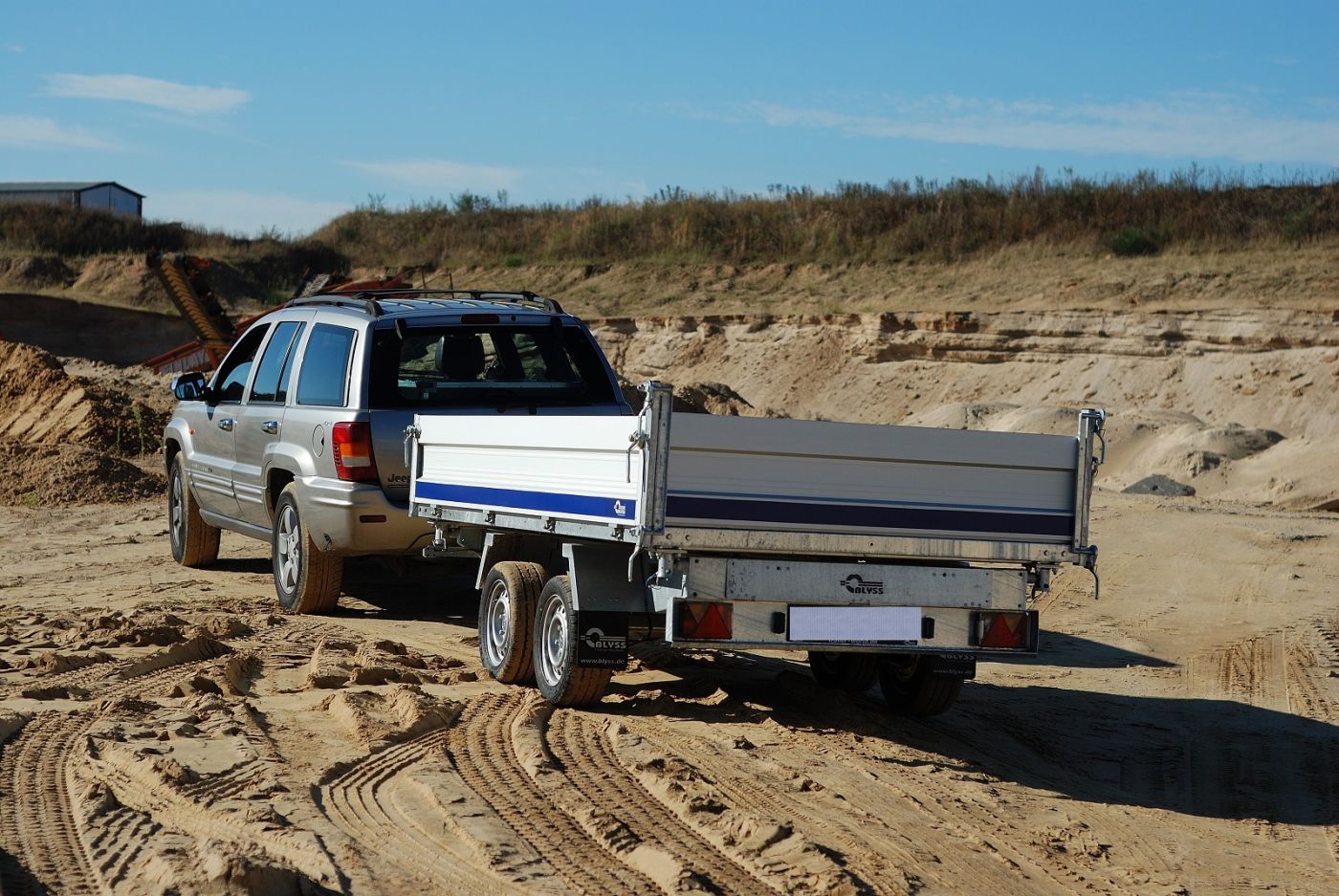

3-way tipper + Tipper MK3530EP

  Article No. Model InternalDimension [LxWxH cm] Gross Weight [kg] Unladen Weight [kg]   Loading Height [cm] Tyres [Inches]
  4101013061 KP3032HT 314 X 175 X 40 3000 2110   76 13
  4102013561 KP3532HT 314 X 175 X 40 3500 2550   75 13
  4103013561 KP3540HT 400 X 200 X 40 3500 2460   73 13
  42235202 MK3530EP 300 X 177 X 62 3500 2520   80 14
Article No. Name Remark
41130202 Wheel shock absorber incl. 100 km/h confirmation
41130201 Spare wheel
41130203 Folding crank supports
41130204 Flat tarpaulin
411302207 Dropside attachment
411302211 Dropside attachment 3-side tipper 400 x 200 x 40 cm
41130206 Steel mesh top H = approx. 62 cm
411302212 Steel mesh top H = approx. 62 cm 400 x 200 x 40 cm
411302208 Aluminium ramp rails 250 cm long
411302209 Aluminium ramp rails 300 cm long
411302210 Steel ramp rails 250 cm long
demo
demo
demo
demo
demo
demo
demo
demo
demo

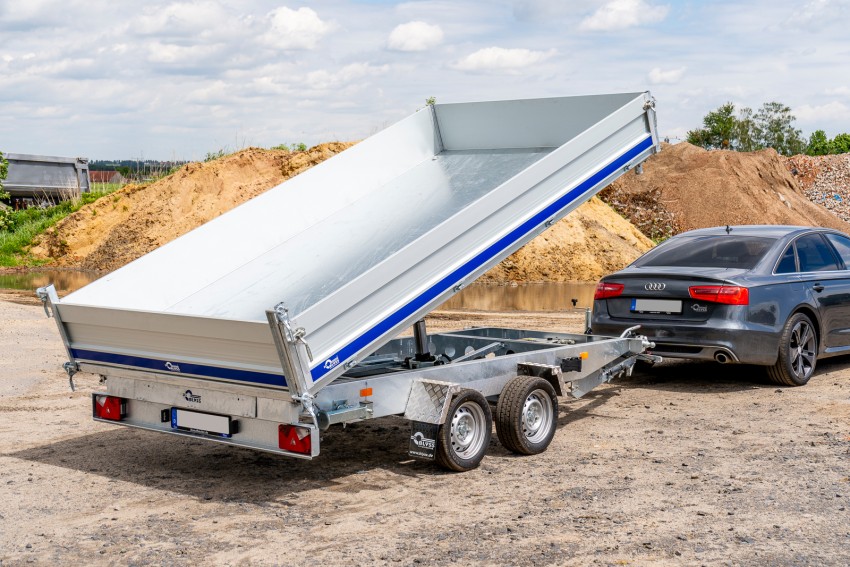

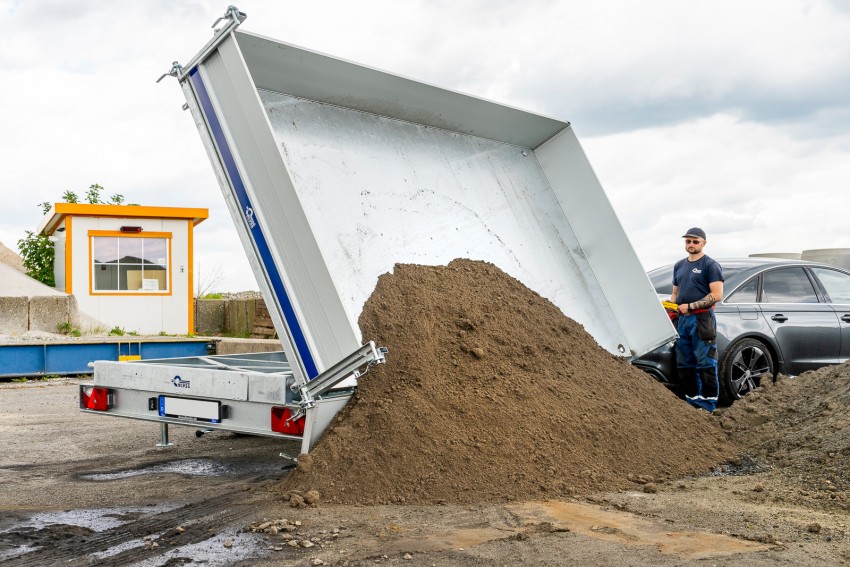

Standard equipment:

  • 3-way tipper
  • Welded steel frame, hot dip galvanised
  • V-drawbar
  • Bridge floor made from one piece
  • Tie rings mounted on the bridge floor
  • Steel stanchions with insertion options for e.g. steel mesh attachment, tarpaulin & bows etc.
  • Rear flap pendulum
  • Angle lever Dropside Steel fasteners
  • Drop sides, removable
  • Prepared plank shafts for retrofitting drive-on rails • Combination unit (electric and hand pump)
  • 3 - Stage tilt cylinder
  • Stable automatic jockey wheel
  • 13 - pin plug

TipperMK3530EP:

  • Welded steel frame, hot dip galvanised
  • V-drawbar
  • Steel mudguard
  • Electric pump
  • Stable automatic jockey wheel
  • 3 - stage tilt cylinder
  • 13 - Pole plug
  • Wheel shock absorber
  • Loading capacity - 4.25 cubic meters
