Box trailers high bed - Sandwich

Article No. Model Internal Dimension [LxWxH cm] Gross Weight [kg] Unladen Weight [kg] Loading Height [cm] Tyres [Inches]
05201011322 FC1326H 260 X 160 X 180 1300   60 10
05202011322 FC1326H/HK 260 X 160 X 180 1300   60 10
05203011322 FC1330H 305 X 180 X 180 1300   60 10
05204011322 FC1330H/HK 305 X 180 X 180 1300   60 10
05205011322 FC1336H 360 X 180 X 180 1300   60 10
05206011322 FC1336H/HK 360 X 180 X 180 1300   60 10
05207012022 FC2026HT 260 X 160 X 180 2000   60 10
05208012022 FC2026HT/HK 260 X 160 X 180 2000   60 10

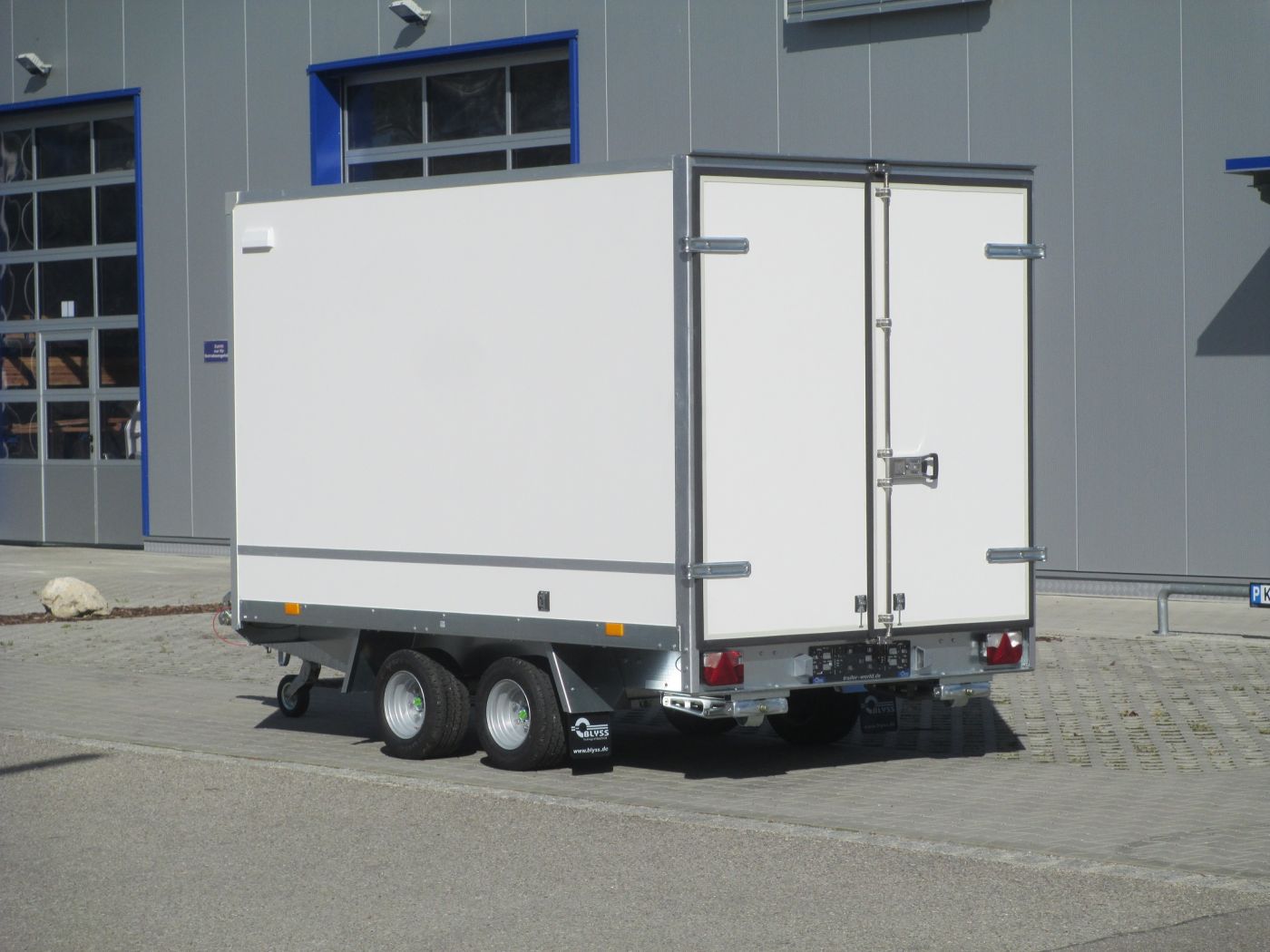

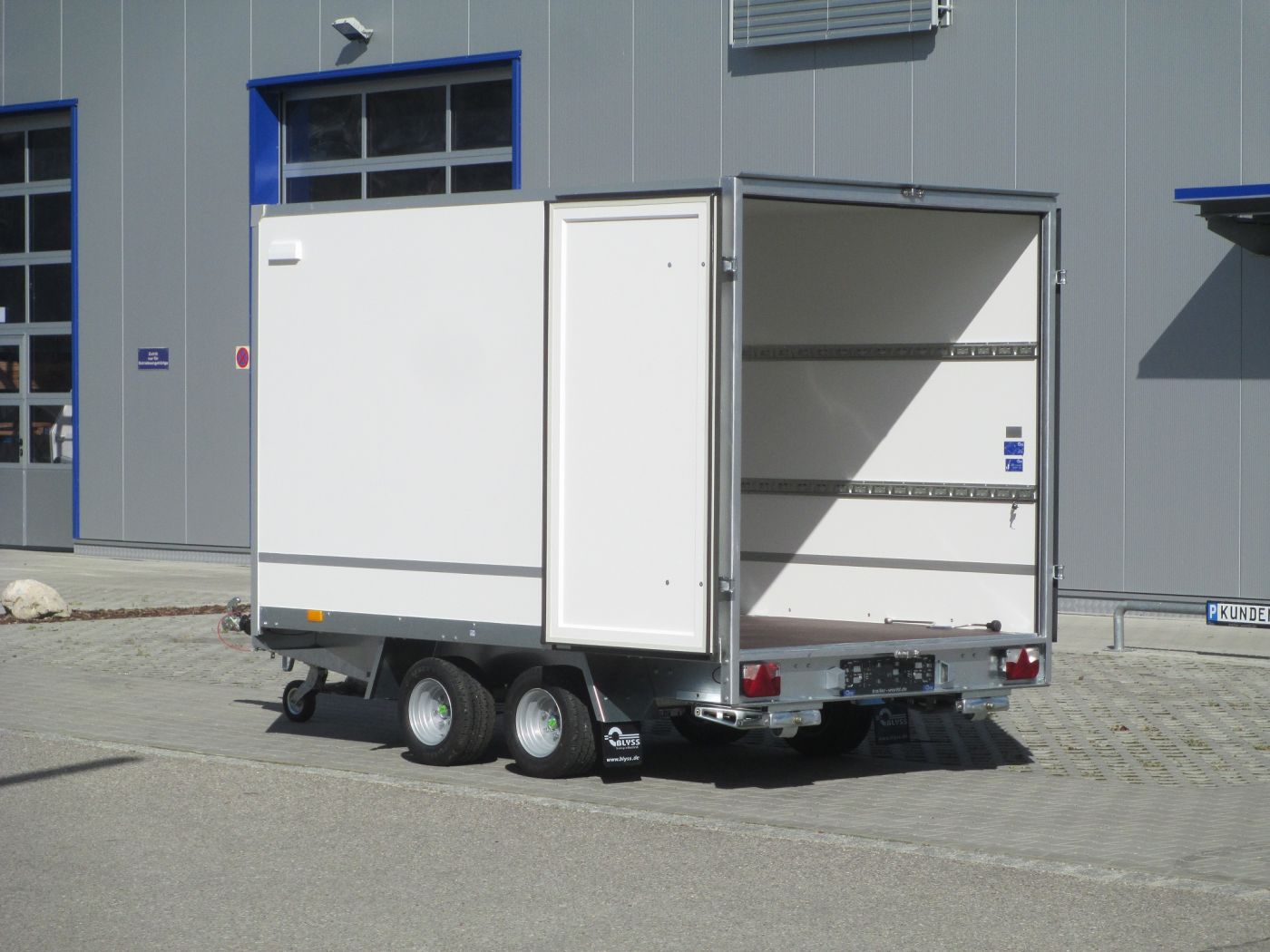

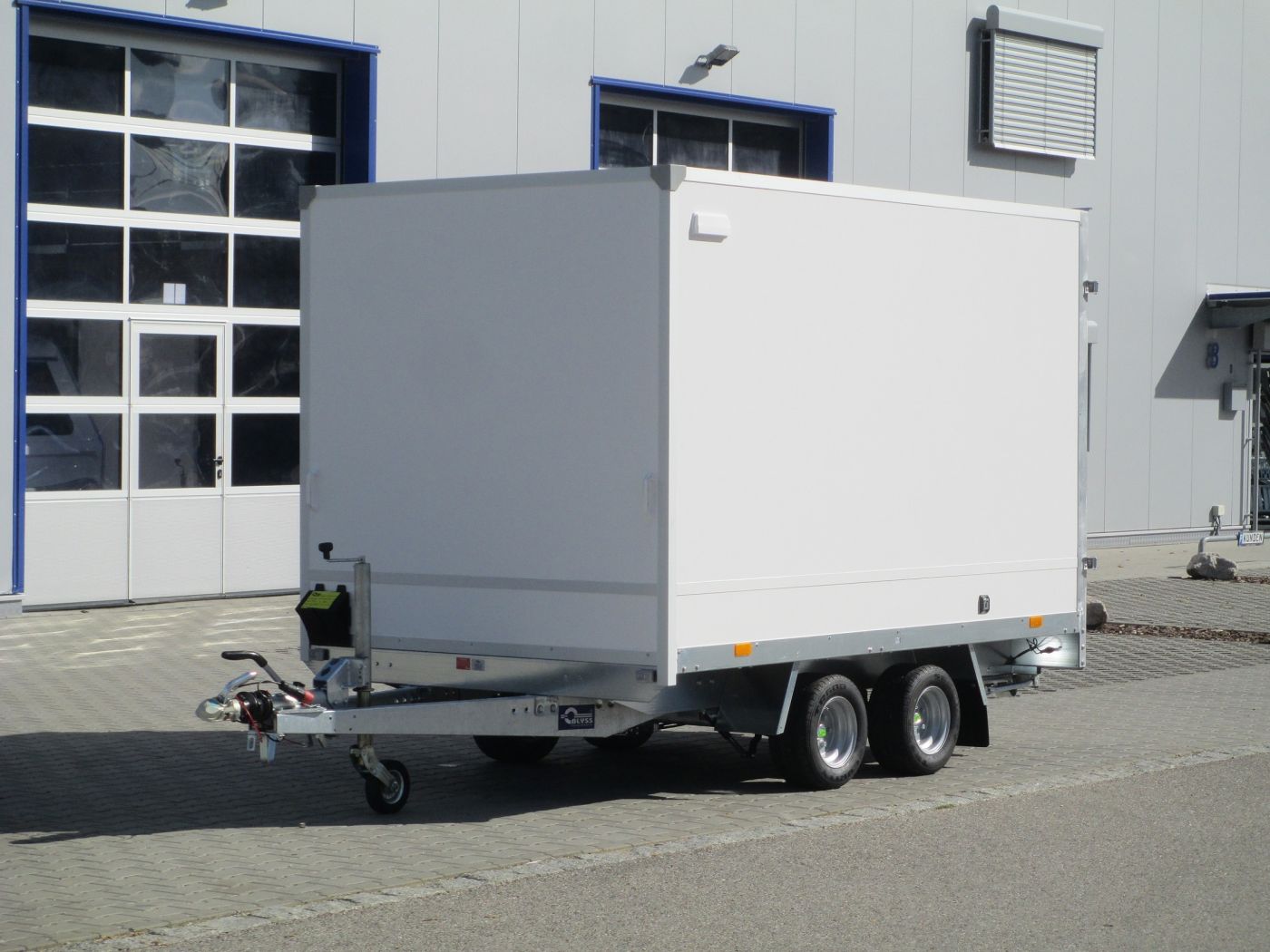

05209012022 FC2030HT 305 X 180 X 180 2000   60 10
05210012022 FC2030HT/HK 305 X 180 X 180 2000   60 10
05211012022 FC2036HT 360 X 180 X 180 2000   60 10
05212012022 FC2036HT/HK 360 X 180 X 180 2000   60 10
05213012722 FC2726HT 260 X 160 X 180 2700   60 10
05224012722 FC2726HT/HK 260 X 160 X 180 2700   60 10
05214012722 FC2730HT 305 X 180 X 180 2700   60 10
05215012722 FC2730HT/HK 305 X 180 X 180 2700   60 10
05216012722 FC2736HT 360 X 180 X 180 2700   60 10
05224012722 FC2736HT/HK 360 X 180 X 180 2700   60 10

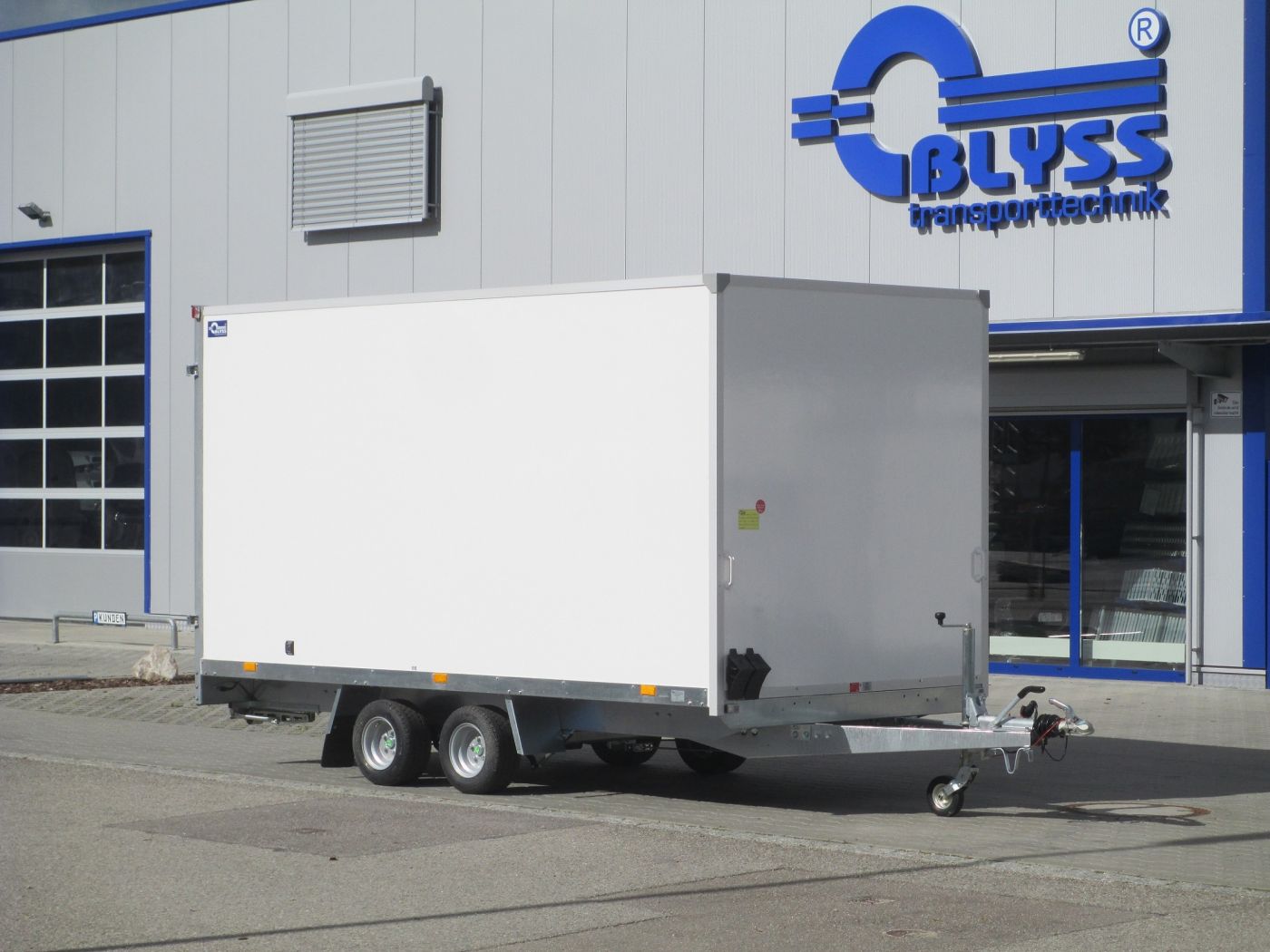

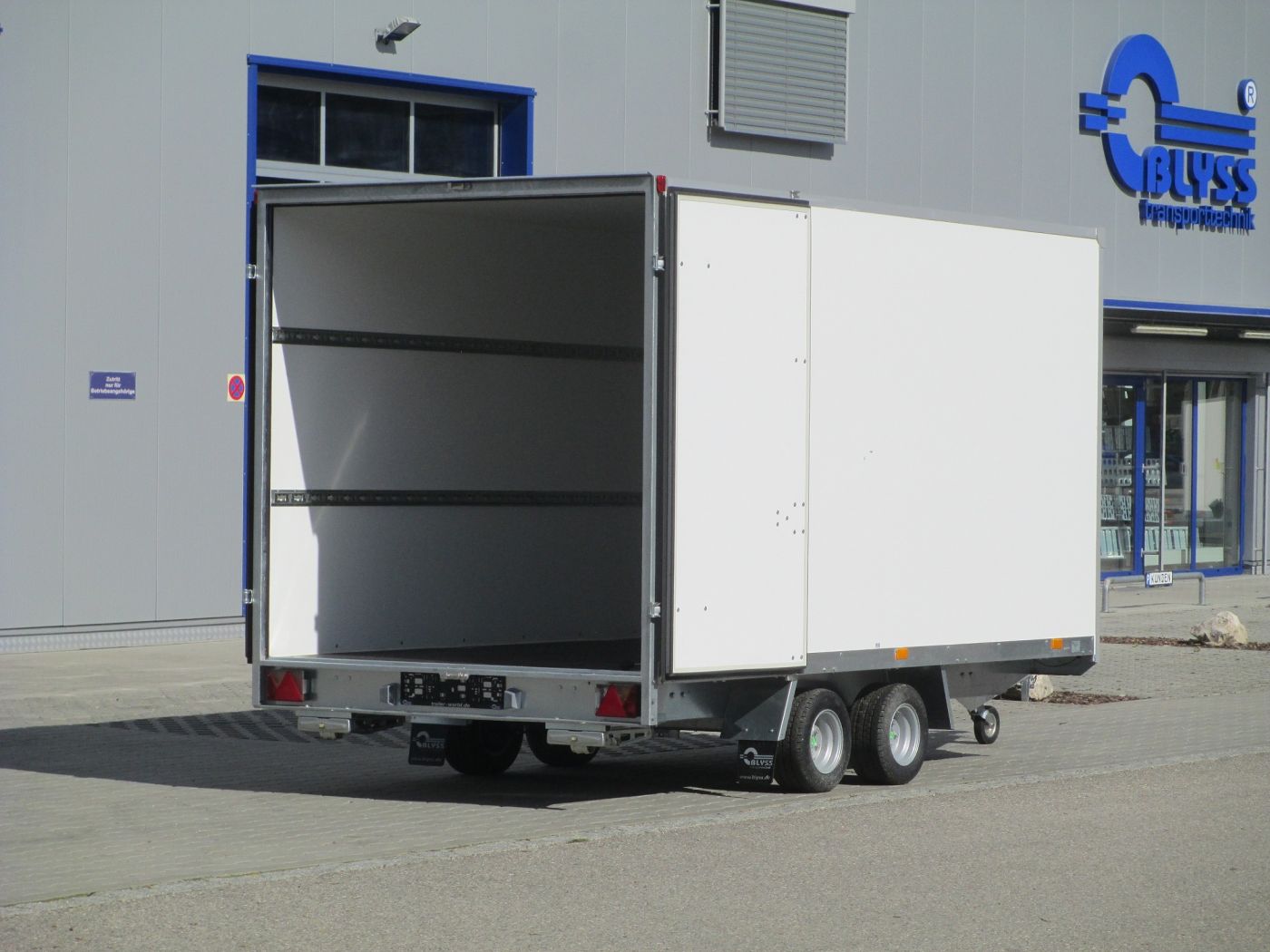

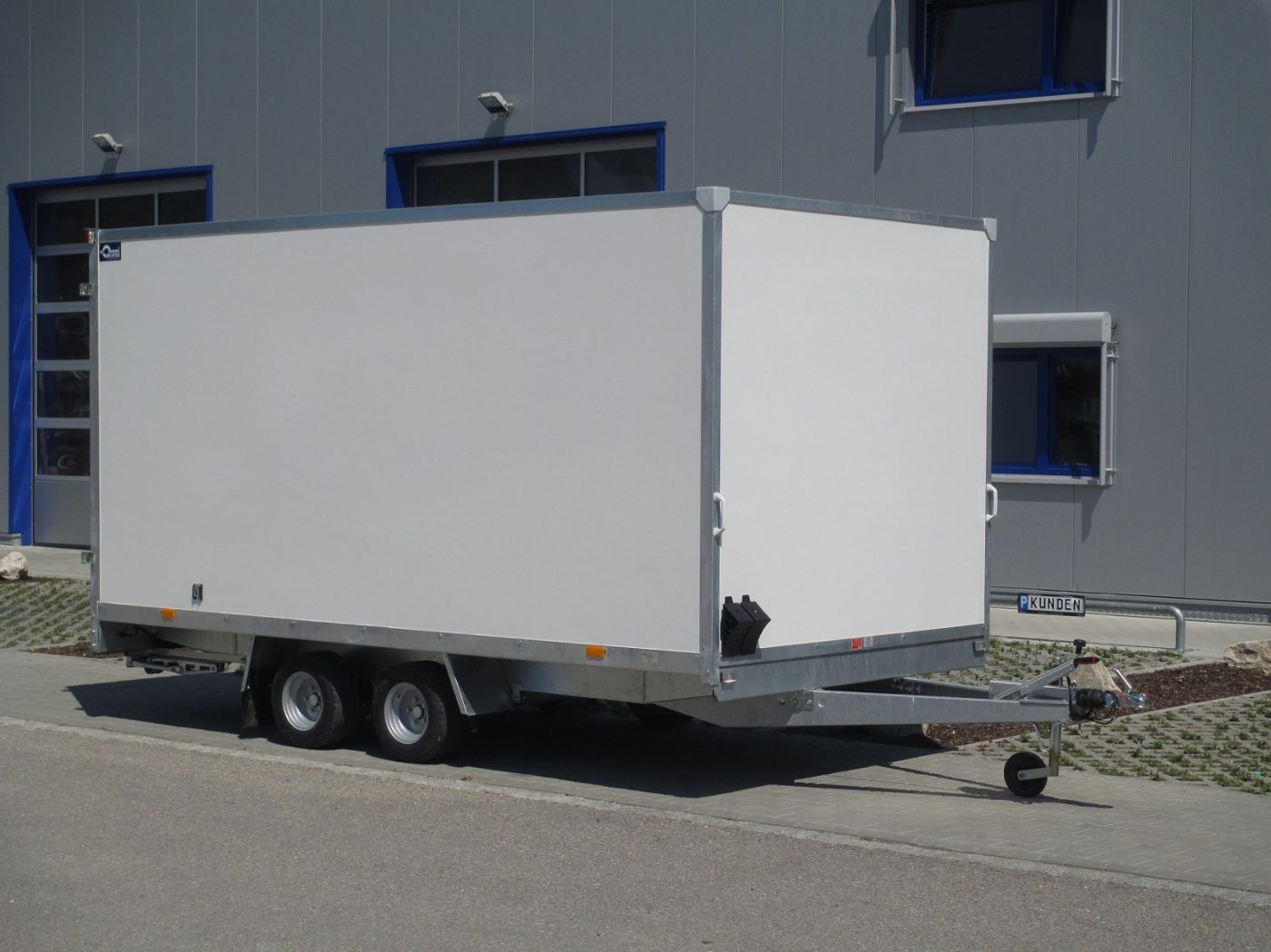

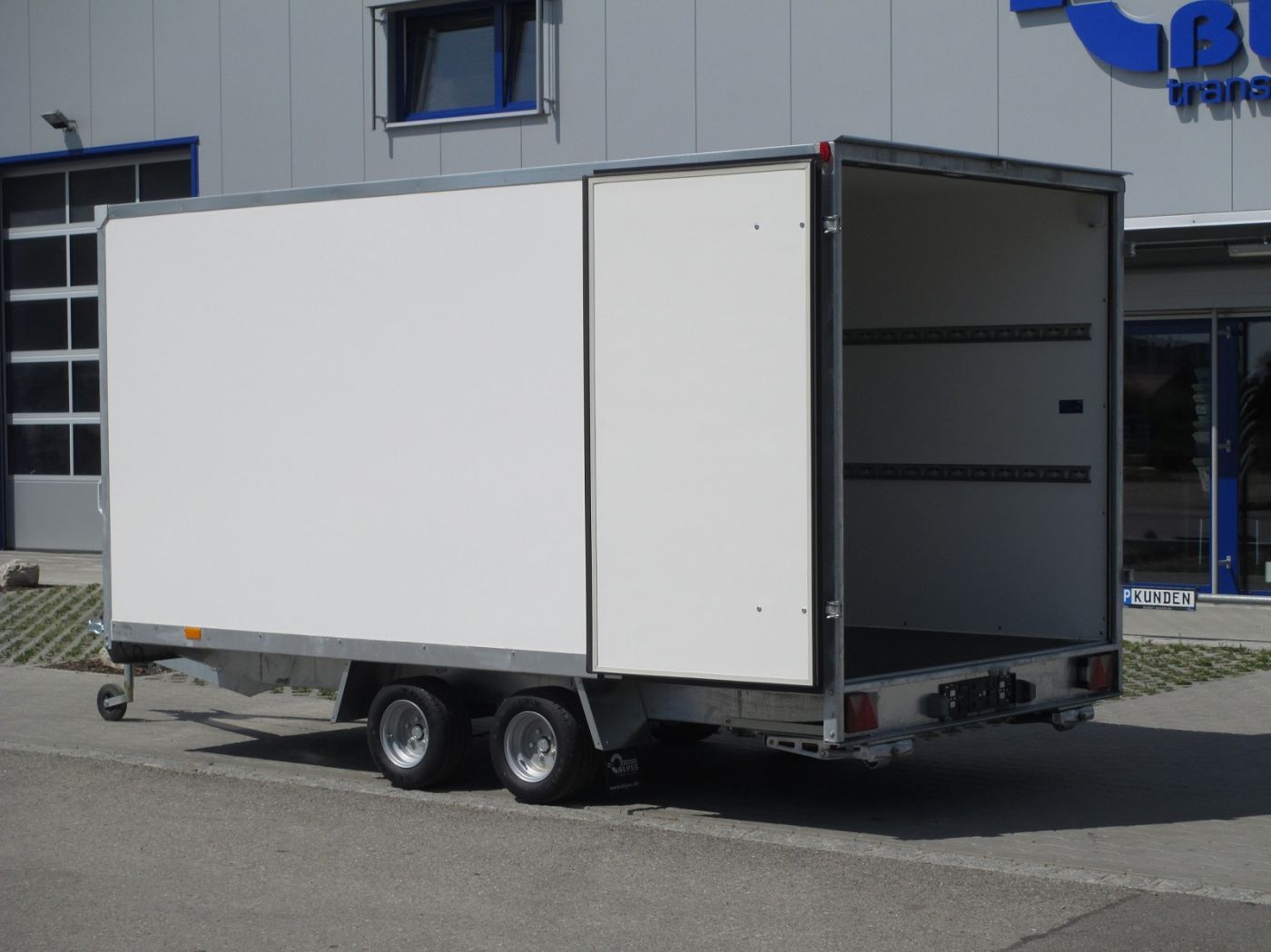

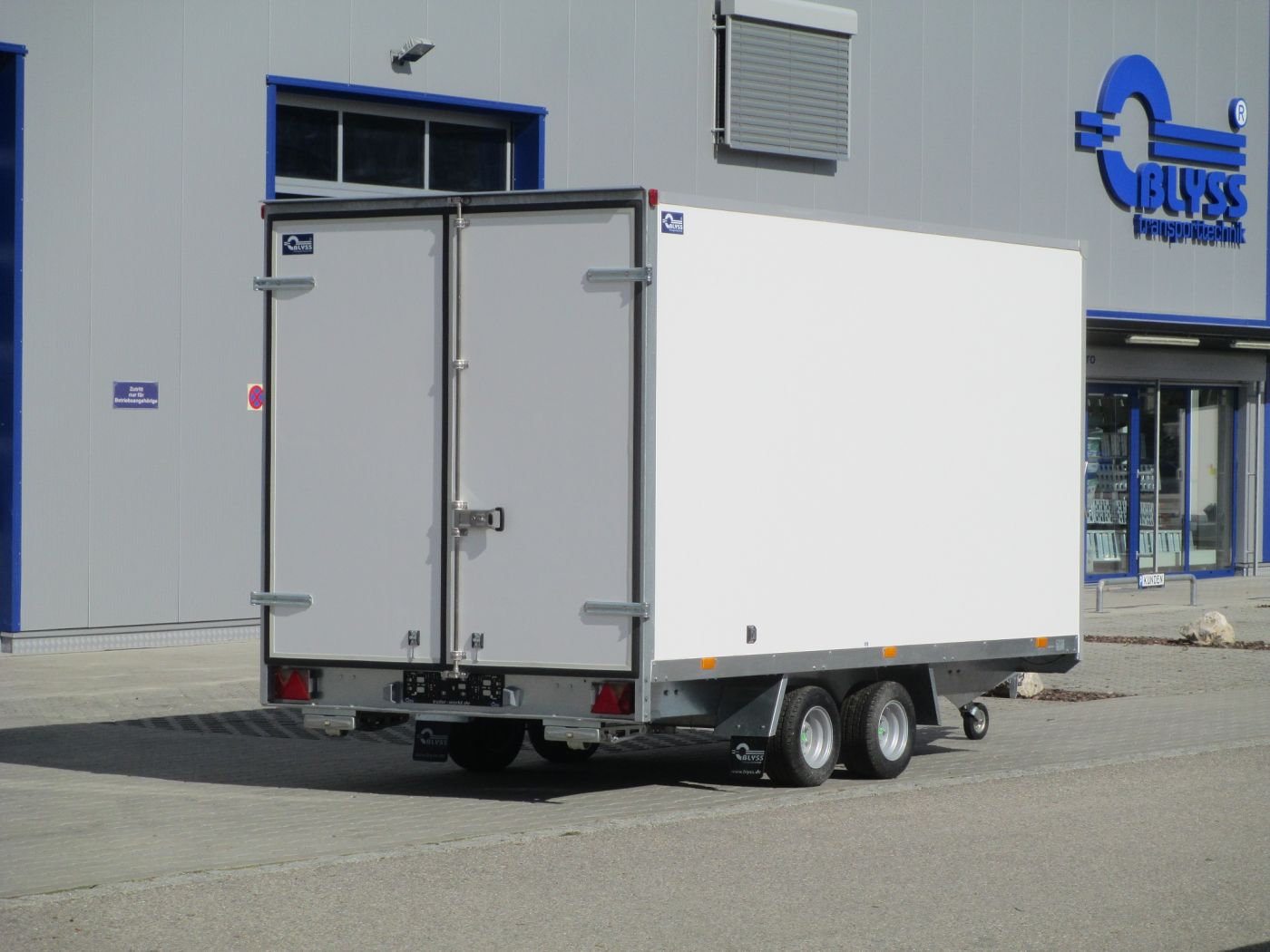

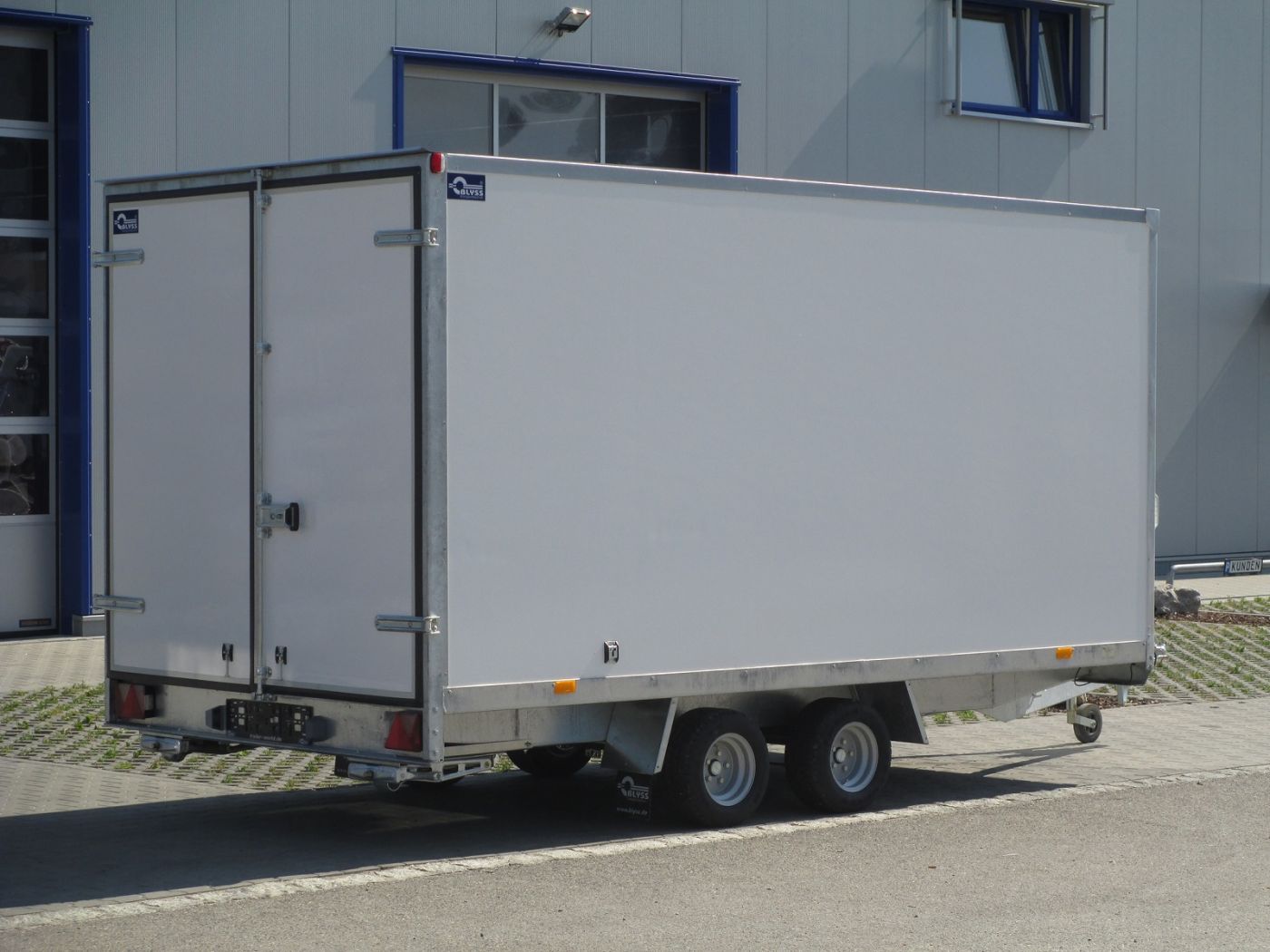

05218022722 FC2740HT 400 X 200 X 190 2700   60 10
05219022722 FC2740HT/HK 400 X 200 X 190 2700   60 10
05520032722 FC2740HT/2 400 X 200 X 200 2700 1800 60 10
05221032722 FC2740HT/2/HK 400 X 200 X 200 2700 1780 60 10
05222033022 FC3040HT 400 X 200 X 200 3000   60 10
05223033022 FC3040HT/HK 400 X 200 X 200 3000   60 10
05230033522 FC3540HT 400 X 200 X 200 3500   60 10
05240033522 FC3540HT/HK 400 X 200 X 200 3500   60 10
Article No. Name Remark
51175101 Side door
51175115 Sales flap on the side F1326, F2026, F2726
51175106 Sales flap on the side F1330, F2030, F2730
5117514 Sales flap on the side F1336, F2036, F2736
5117506 Sales flap on the side F2740, F3040, F3540
51175104 Aero bevel in front 50 X 50
5127503 Window 80 X 35 cm
5127502 Window 80 X 50 cm
5127507 Window 90 X 55 cm
5127504 Window 120 X 54 cm
5127505 Window 120 X 60 cm
5127506 Blackout blind with flyscreen 80 X 50 cm
5127508 Blackout blind with flyscreen 120 X 60 cm / 120 x 60cm
14141002 Interior lighting LED
5127509 Outdoor lighting LED
demo
demo
demo
demo
demo
demo
demo
demo
demo

Standard equipment:

  • Steel frame hot-dip galvanised
  • Side walls and roof made of sandwich panels 23 mm
  • Base plate 15 mm
  • Lashing rail 2 pieces per side
  • Lashing rings sunk into the floor
  • Double wing door with espagnolette lock and stainless steel hinges
  • Drive-over wall
  • Rear supports
  • Wheel shock absorber incl. 100 km/h confirmation
  • 13 - pin plug
