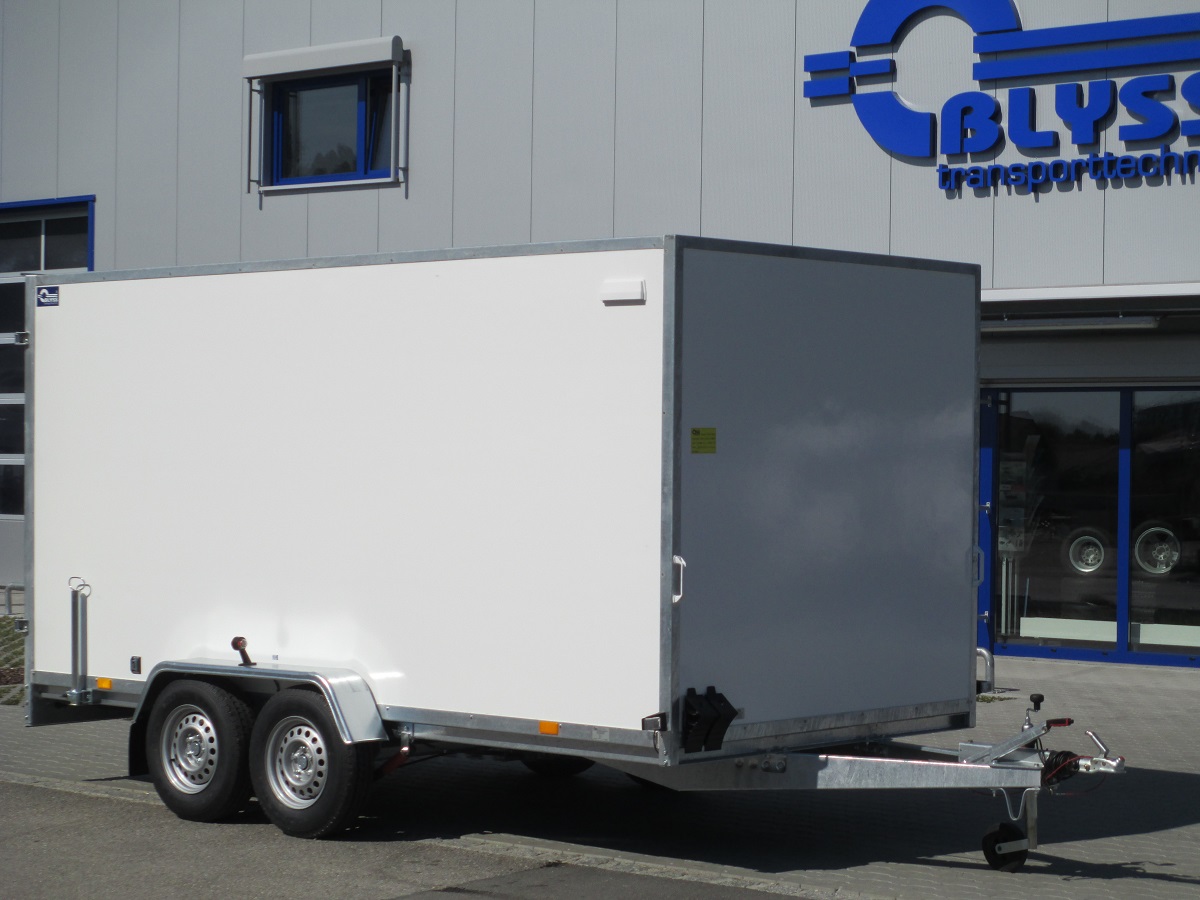

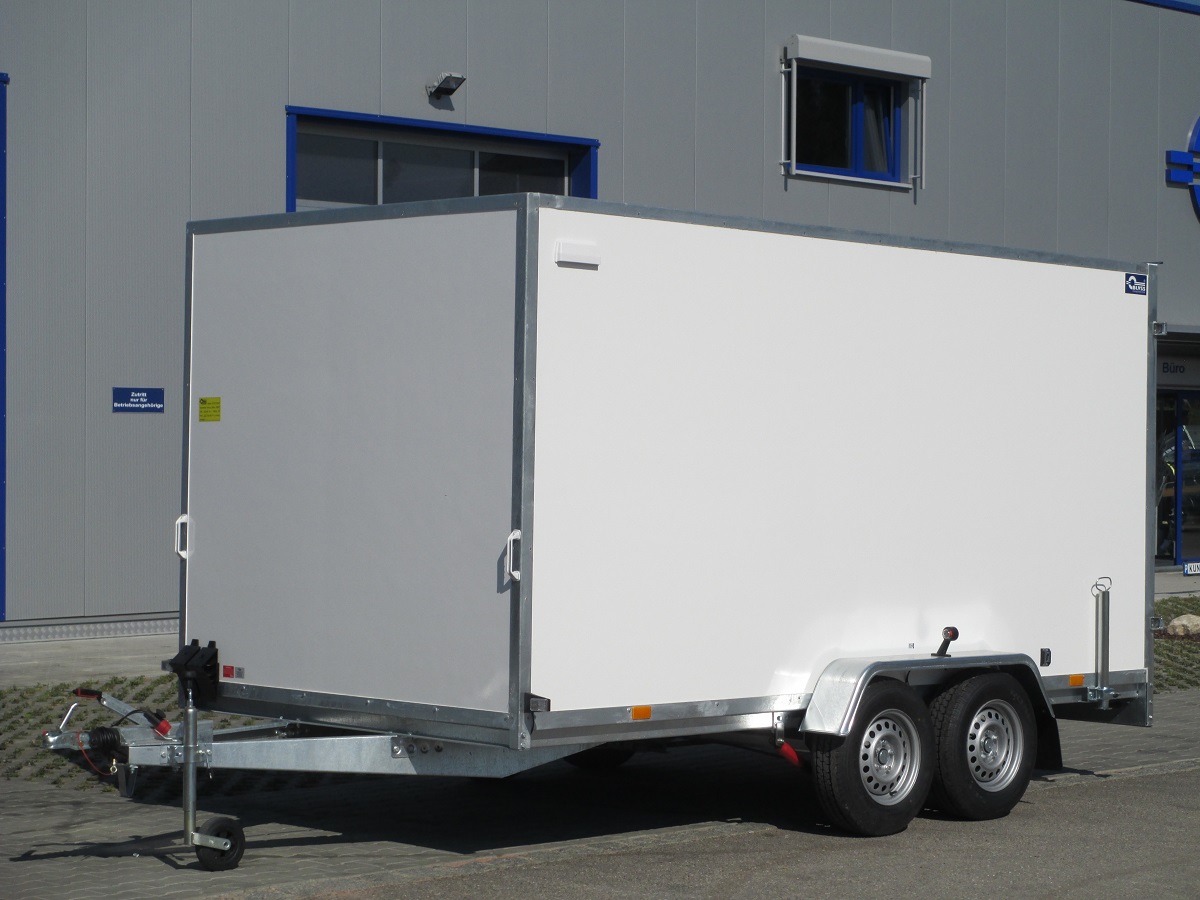

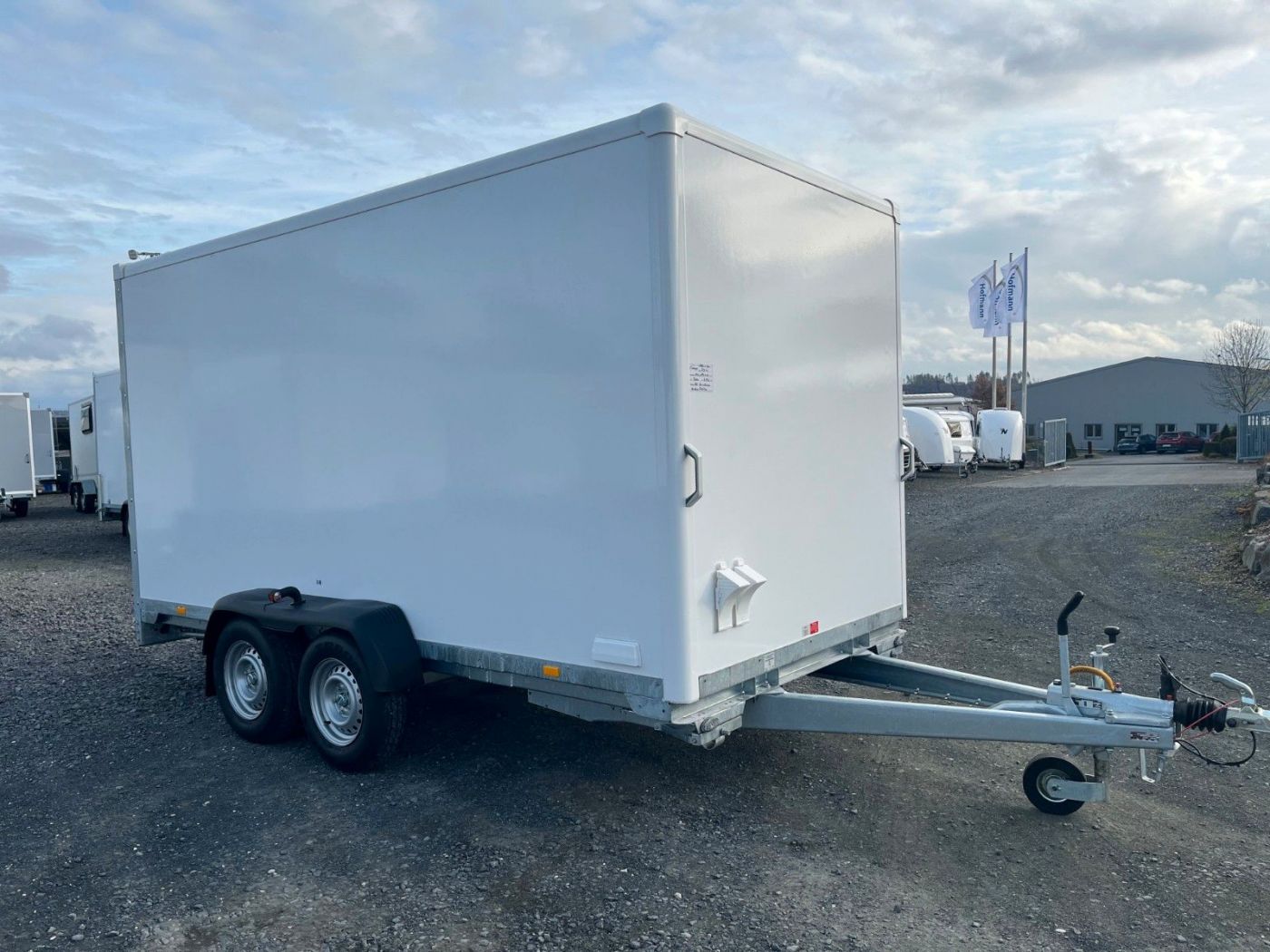

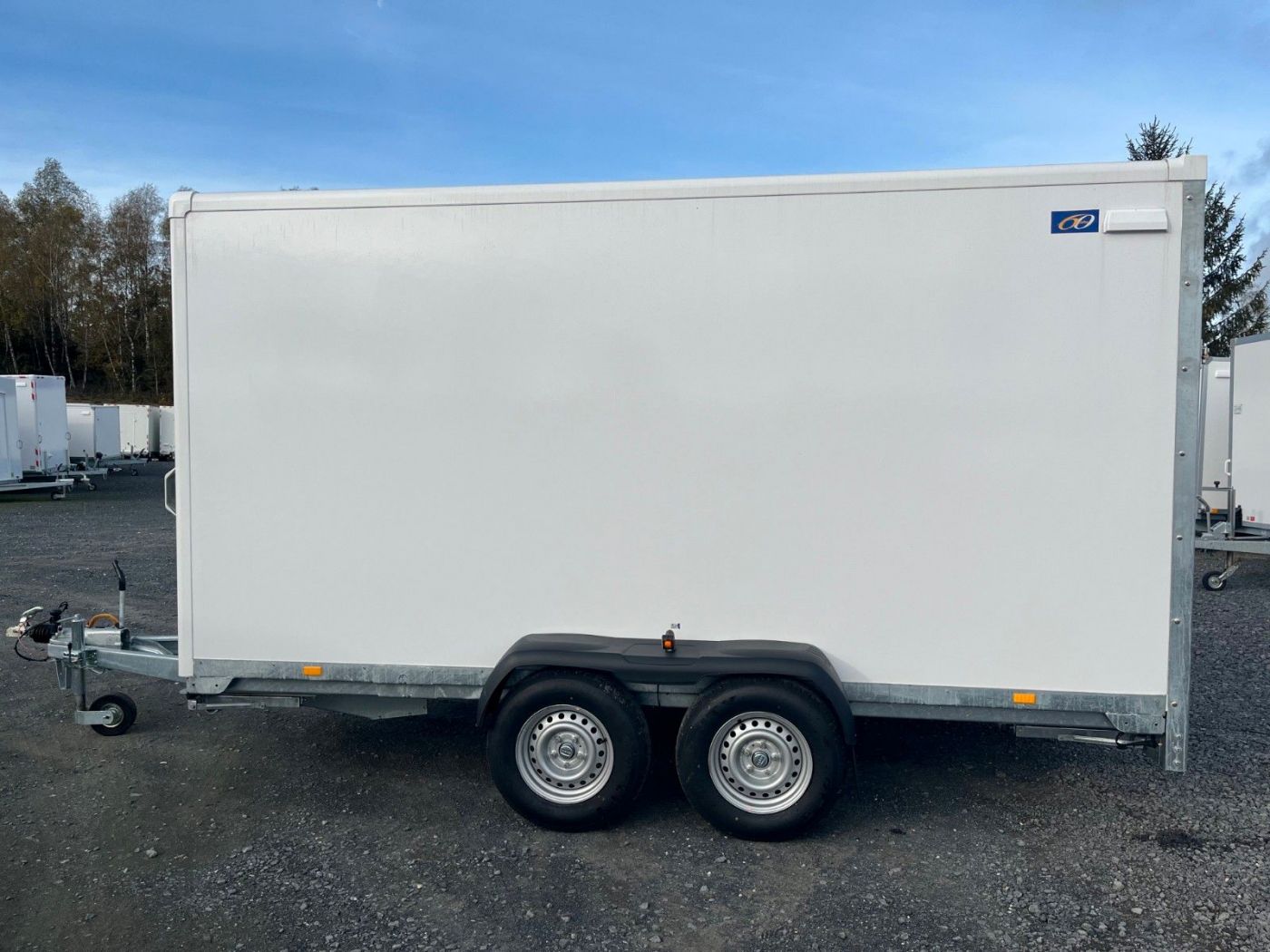

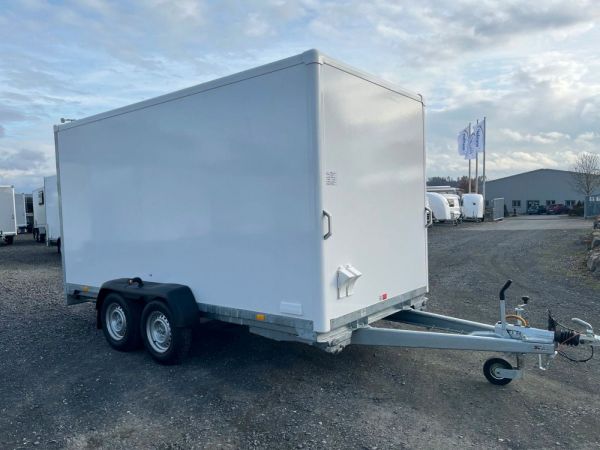

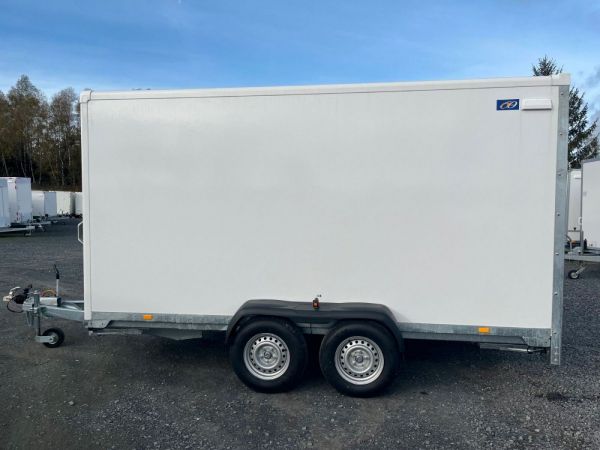

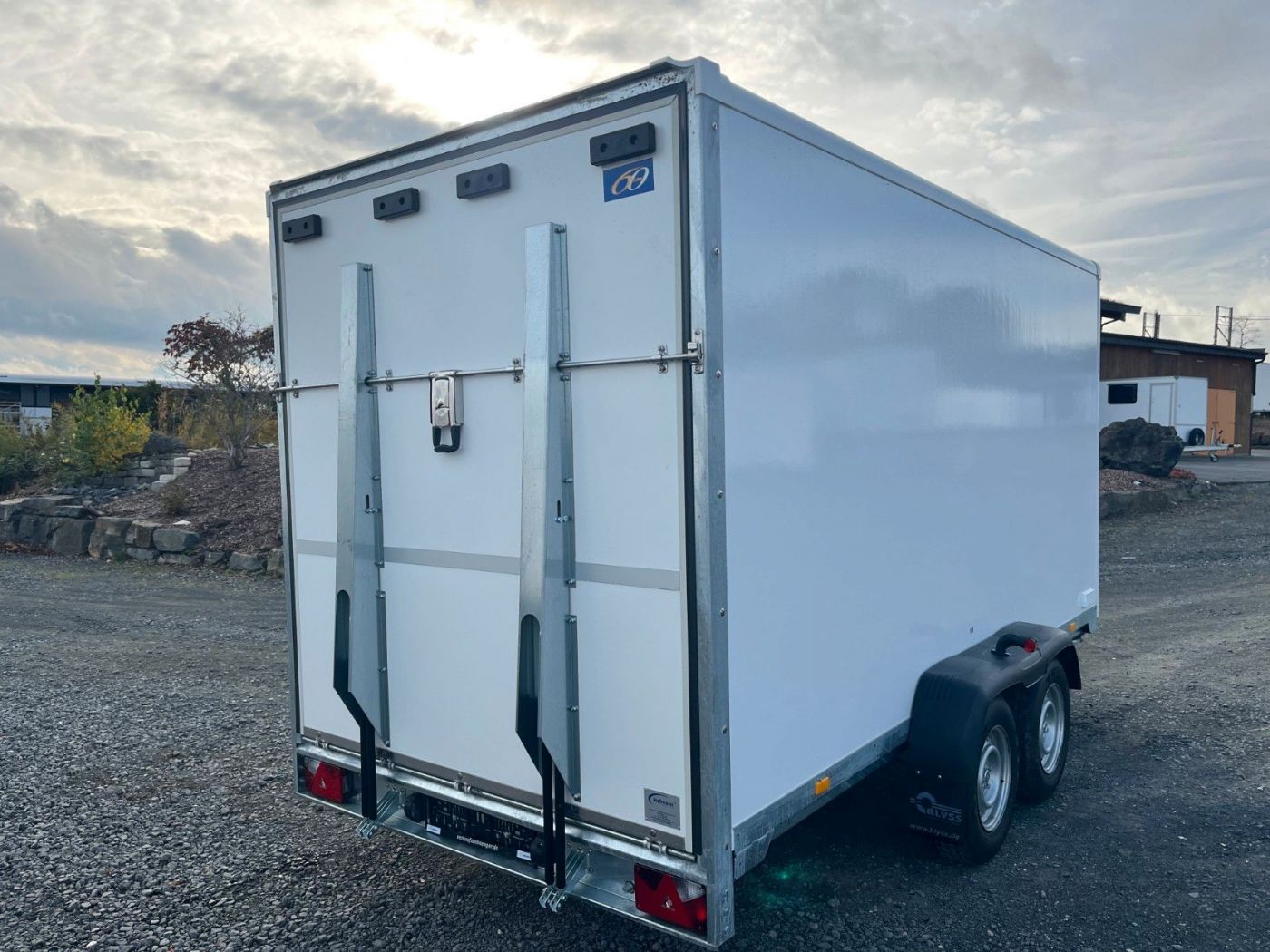

Box trailers sandwich 2 axles

Article No. Model Internal Dimension [LxWxH cm] Gross Weight [kg] Unladen Weight [kg] Loading Height [cm] Tyres [Inches]
05201012021 F2030HT 305 X 150 X 180 2000 1350 50 13
05202012021 F2030HT/HK 305 X 150 X 180 2000 1310 50 13
05203012021 F2036HT 353 X 150 X 180 2000 1300 50 13
05204012021 F2036HT/HK 353 X 150 X 180 2000 1260 50 13
05205012721 F2736HT 358 X 146 X 180 2700   50 13
05206012721 F2736HT/HK 358 X 146 X 180 2700   50 13
05207022721 F2741HT 400 X 200 X 190 2700 1890 50 13
05208022721 F2741HT/HK 400 X 200 X 190 2700 1850 50 13
05209032721 F2741HT/2 400 X 200 X 200 2700 1840 50 13
05210032721 F2741HT/2/HK 400 X 200 X 200 2700 1800 50 13
05211022721 F2750HT 500 X 200 X 190 2700 1650 50 13
05212022721 F2750HT/HK 500 X 200 X 190 2700 1610 50 13
05213023021 F3050HT 500 X 200 X 190 3000   50 13
05214023021 F3050HT/HK 500 X 200 X 190 3000   50 13
05214033021 F3060HT 600 X 200 X 200 3000   50 13
05215033021 F3060HT/HK 600 X 200 X 200 3000   50 13
Article No. Name Remark
51175101 side door
51175108 Sales flap on the side F2030
51175514 Sales flap on the side F2036, F2736
5117505 Sales flap on the side F2741
51175104 Aero bevel in front 50 X 50
5127503 Window 80 X 35 cm
5127502 Window 80 X 50 cm
5127507 Window 90 X 55 cm
5127504 Window 120 X 54 cm
5127505 Window 120 X 60 cm
5127506 Blackout blind with flyscreen 80 X 50 cm
5127508 Blackout blind with flyscreen 120 X 54 cm / 120 x 60cm
14141002 Interior lighting LED
5127509 Outdoor lighting LED
demo
demo
demo
demo
demo
demo
demo

Standard equipment:

  • Steel frame hot-dip galvanised
  • Sandwich side walls 23 mm
  • Base plate 15 mm

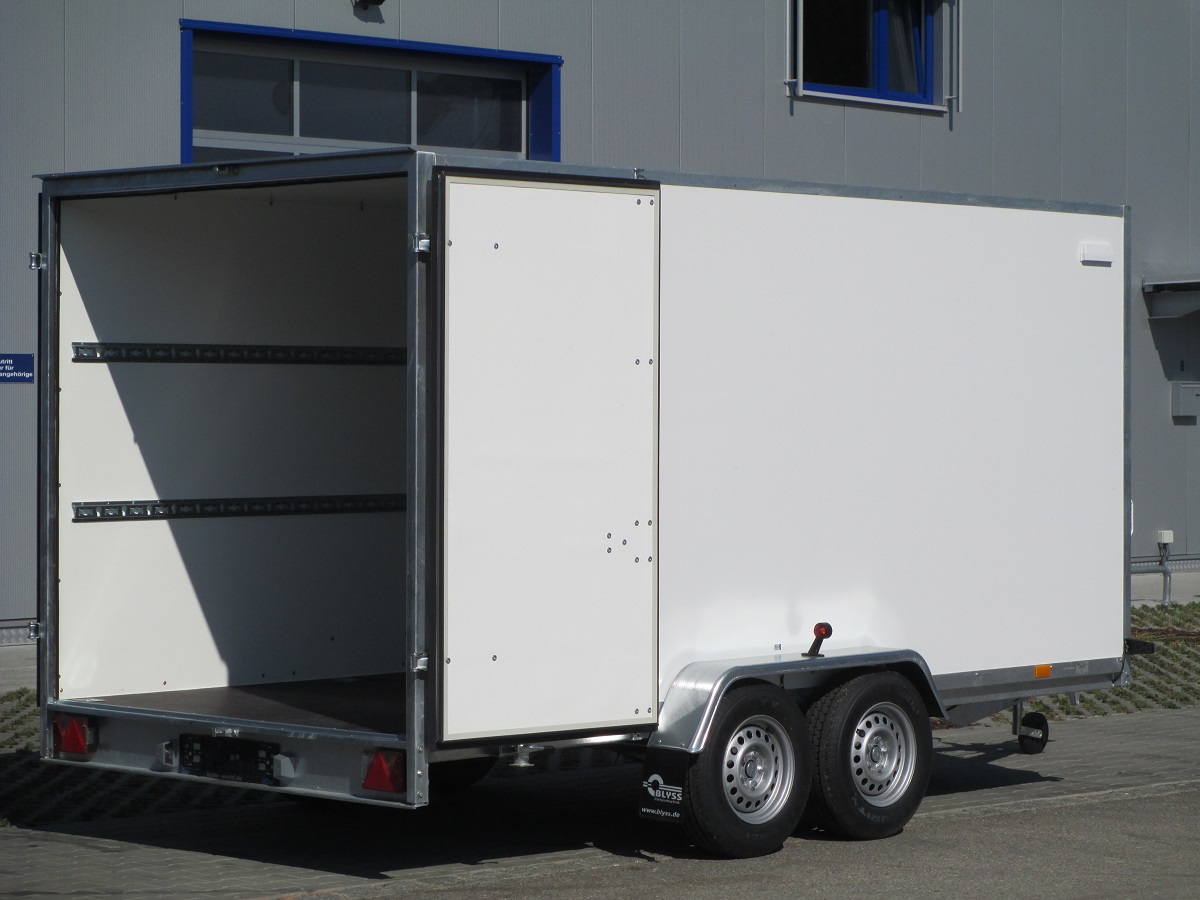

  • Lashing rail 2 pieces per side
  • Lashing rings sunk into the floor

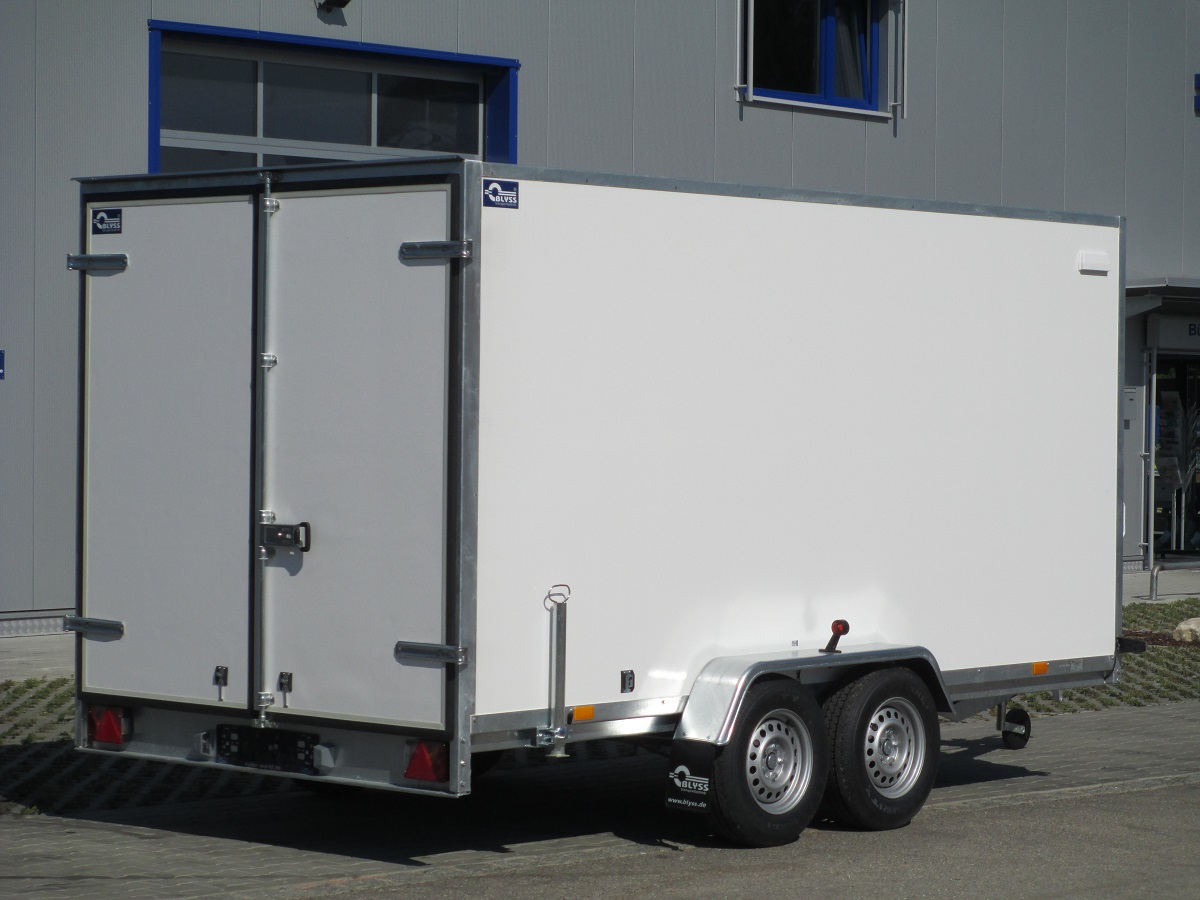

  • Double wing door with espagnolette lock and stainless steel hinges
  • Drive-over wall
  • Rear supports
  • Wheel shock absorber incl. 100 km/h confirmation
  • 13 - pin plug
