Our products

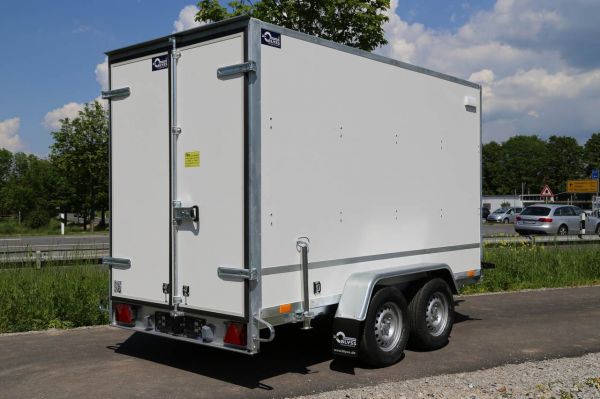

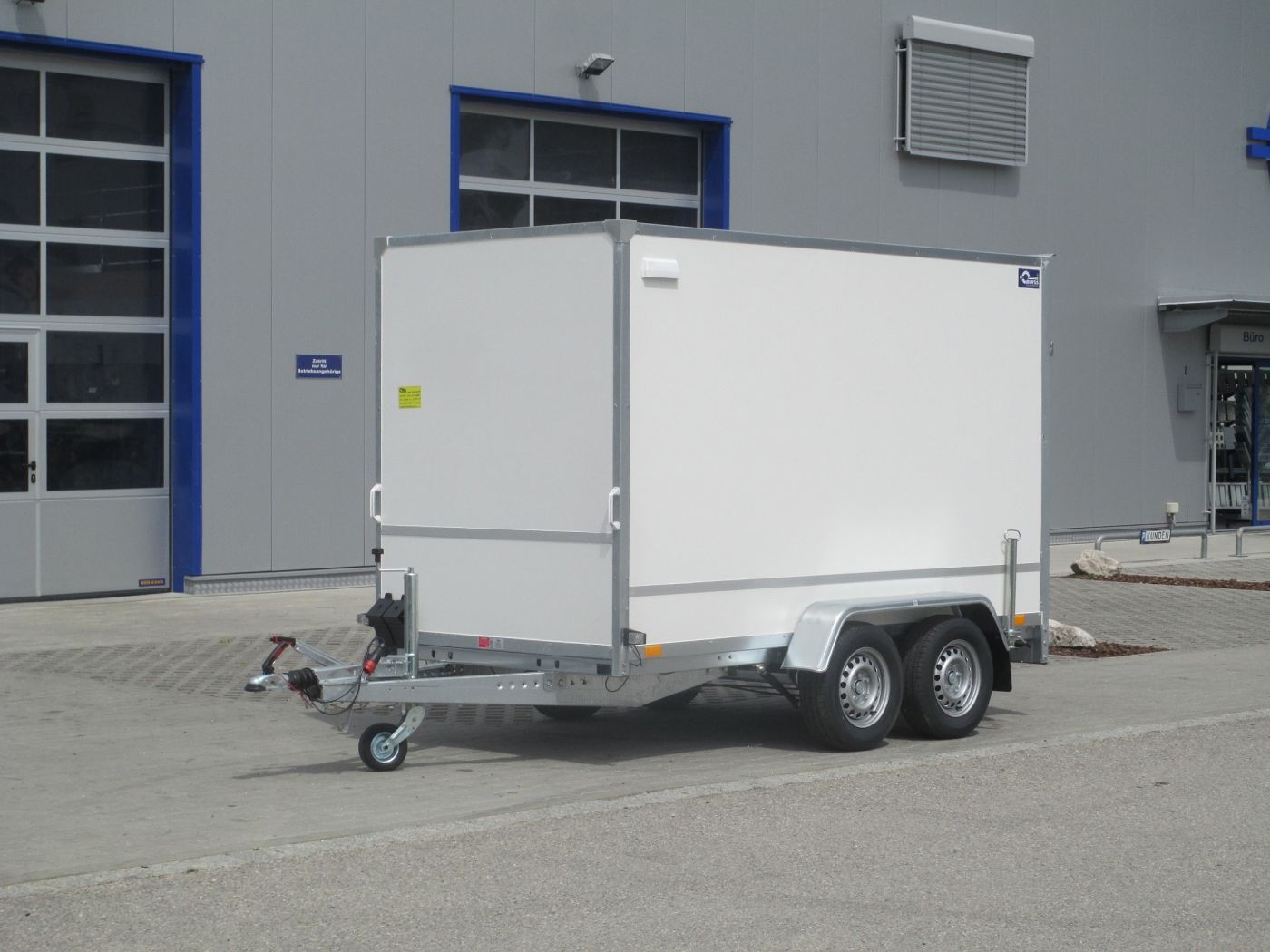

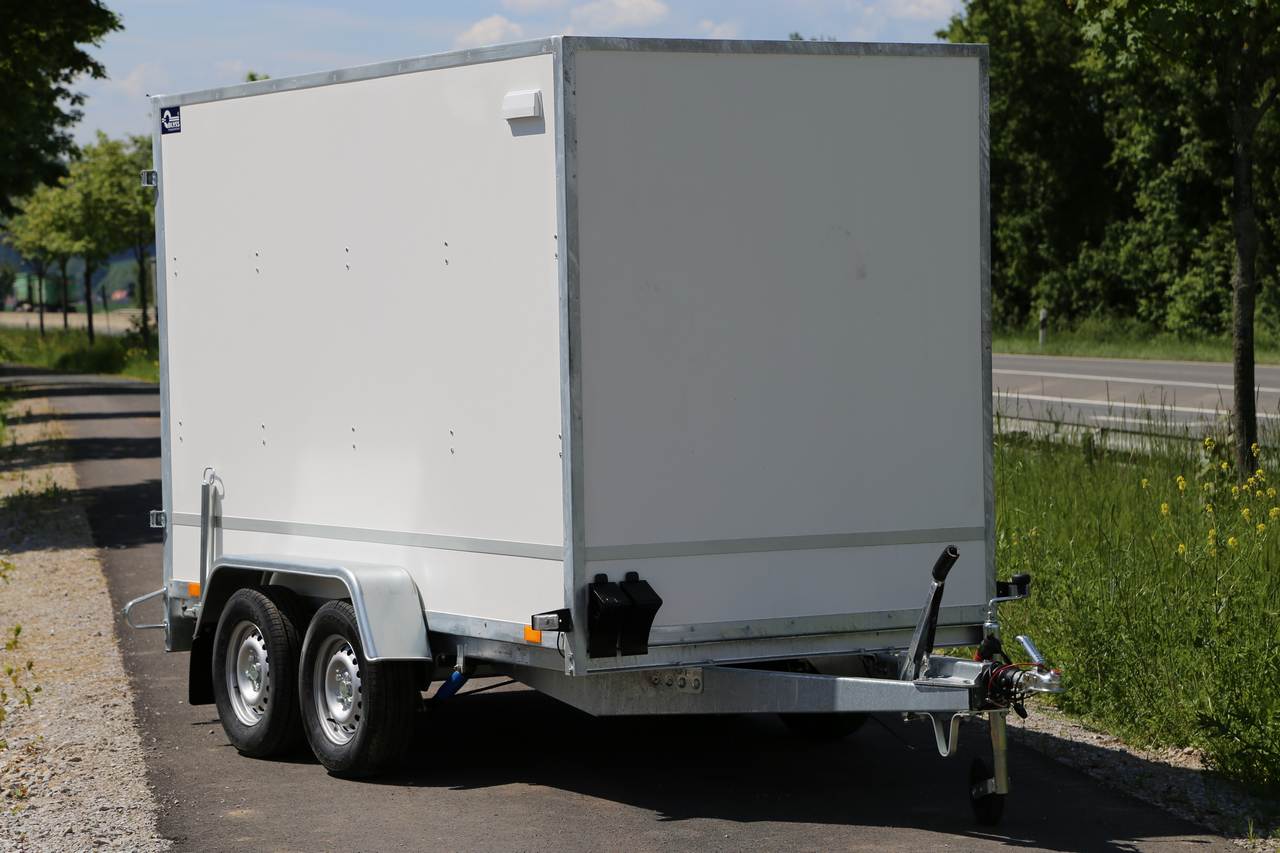

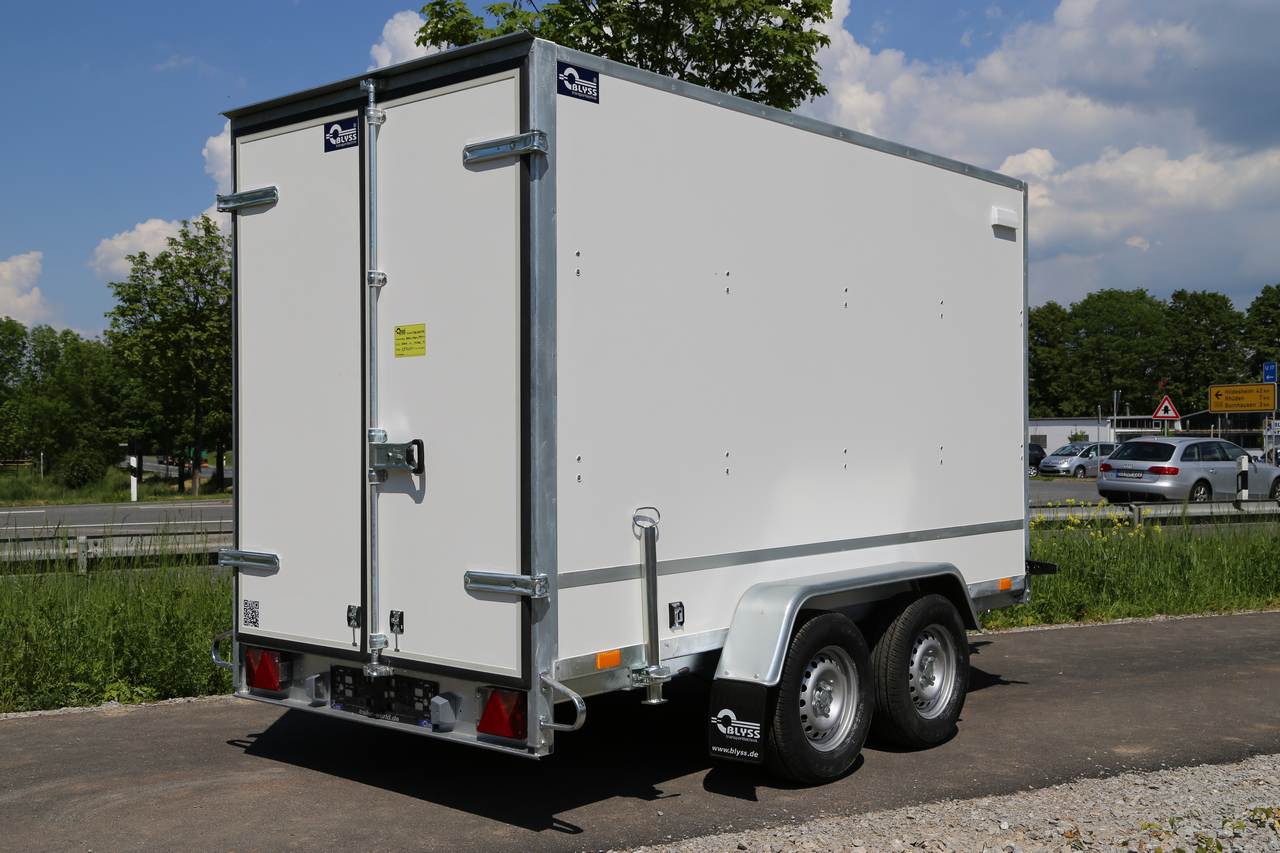

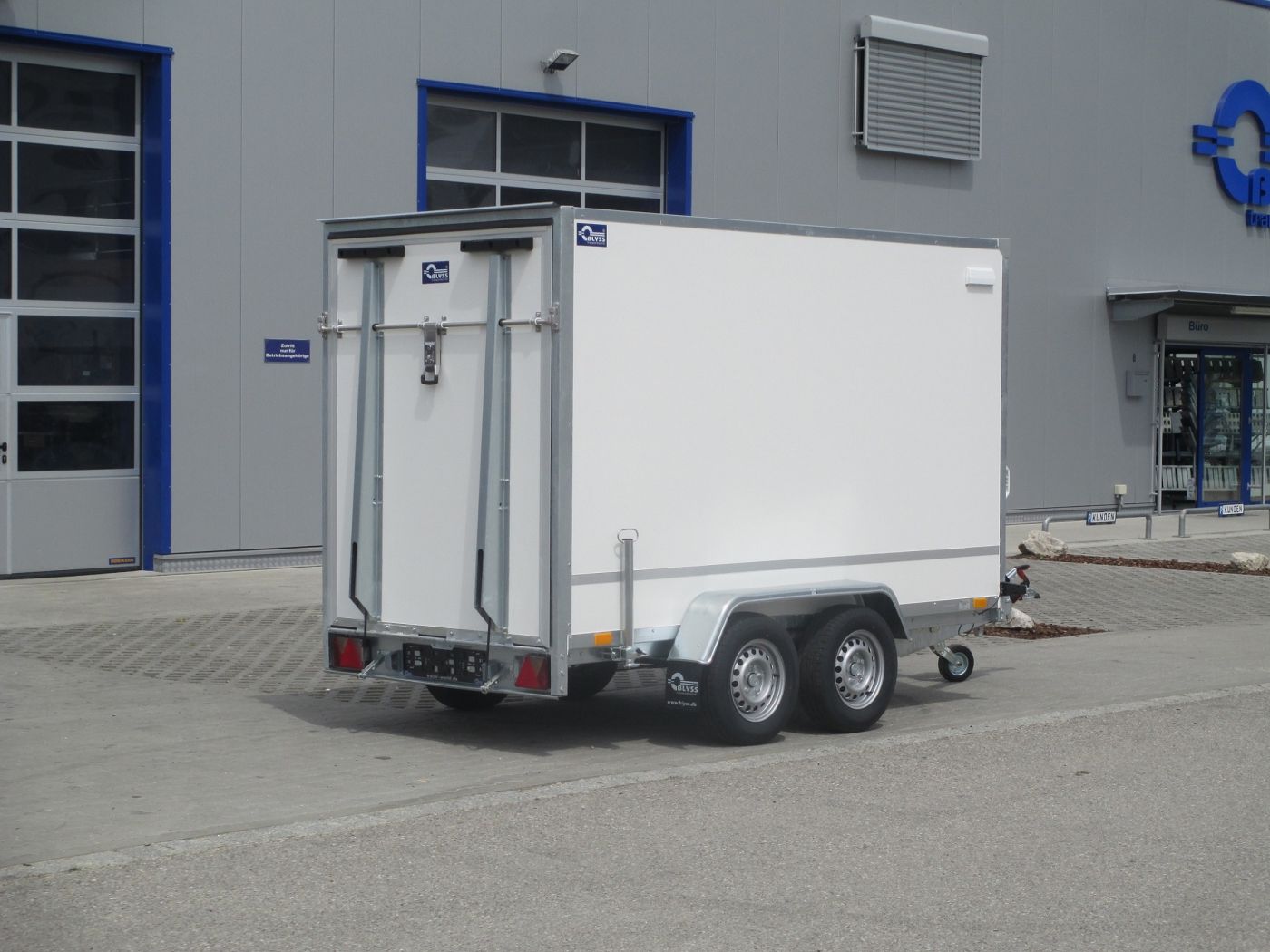

Box trailers plywood - 2 axles

Article No. Model Internal Dimension [LxWxH cm] Gross Weight [kg] Unladen Weight [kg] Loading Height [cm] Tyres [Inches]
05201012011 F2030HTD 305 X 150 X 180 2000 1350 50 13
05202012011 F2030HTD/HK 305 X 150 X 180 2000 1302 50 13
05203012011 F2036HTD 353 X 150 X 180 2000 1250 50 13
05204012011 F2036HTD/HK 353 X 150 X 180 2000 1216 50 13
05205012711 F2730 HTD 305 X 150 X 180 2700 1928 52 13
05206012711 F2730HTD/HK 305 X 150 X 180 2700 1934 52 13
05207012711 F2736HTD 353 X 150 X 180 2700 1846 50 13
05208012711 F2736HTD/HK 353 X 150 X 180 2700 1874 50 13
Article No. Name Remark
51175101 side door
5117504 Sales flap on the side F2030/2730
51175514 Sales flap on the side F2036/3736

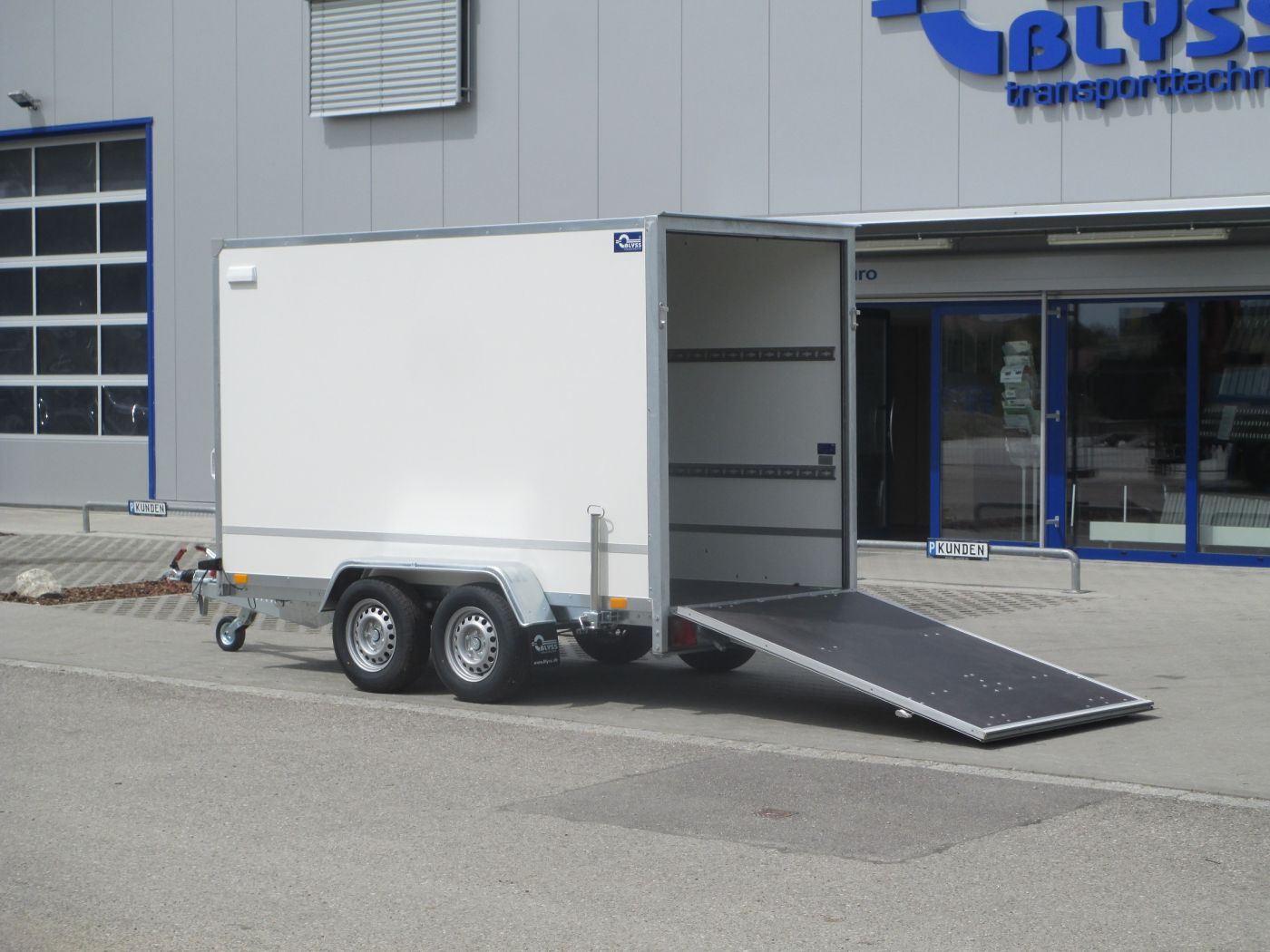

51175107 Combi door / tailgate rear H= 125 - 190 cm
51175109 Combi door / tailgate rear from H= 200 cm
51175104 Aero bevel front 50 X 50
5127503 Window 80 X 35 cm
5127502 Window 80 X 50 cm
5127504 Window 120 X 54 cm
5127505 Window 120 X 60 cm
5127506 Blackout blind with flyscreen 80 X 50 cm
51275010 Blackout blind with flyscreen 120 X 54 cm / 120 x 60cm
14141002 Interior lighting LED
5127509 Outdoor lighting LED
demo
demo
demo
demo
demo

Standard equipment:

  • Steel frame hot-dip galvanised • V-drawbar
  • Floor plate 15 mm stark, F7520 12 mm
  • Laminated wood side walls and roof 15 mm • Lashing rail 2 pieces per side
  • Lashing rings sunk into the floor
  • Double wing door with espagnolette lock and stainless steel hinges
  • Drive-over wall
  • Rear supports
  • Jockey wheel
  • Wheel shock absorber incl. 100 km/h confirmation
  • 13 - pin plug
